EGIS XD Flex 2 ACR + Battery Switch Dual 500A 12/24V

£267.47
Tax included.
8720-1390

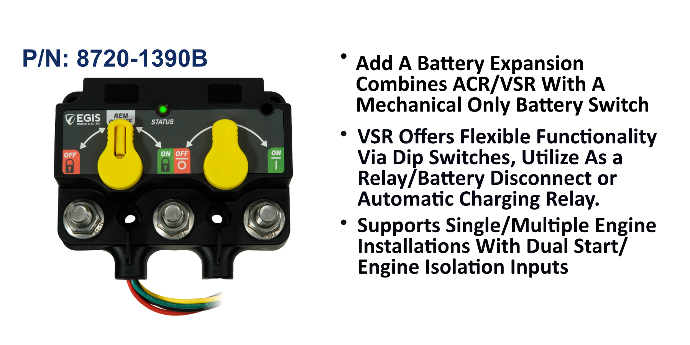

Dual-circuit XD Series Flex 2 module pairing an automatic charging relay with a mechanical-equivalent remote battery switch in one compact device for 12V and 24V systems. Each circuit is rated 500A continuous and 1500A cranking, with independent 3-position manual override knobs, a 1.3mA off-state draw and sealed IP67 / IP6K9K construction. Supplied with tinned wire leads.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS XD Flex 2 Dual combines an automatic charging relay with a mechanical-equivalent remote battery switch in a single compact bi-stable module for 12V and 24V DC systems. The ACR circuit links two battery banks while a charge source is present and isolates them once charging stops, while the second circuit acts as a remote battery disconnect for isolating a bank on demand. Each circuit carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC range, replacing separate relays and their interconnect cabling.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoids draw just 1.3mA in the off state, and each circuit has its own 3-position manual override knob to force it open or closed and lock it there. Front-facing LEDs report status with remote LED replica outputs, the dip switches sit under an included protective cover, and the module can be expanded with optional link and cross-link busbars. This version ships with tinned wire leads.

PRODUCT DETAILS

  • Two independent circuits, an ACR and a mechanical-equivalent remote battery switch
  • Replaces separate relays and remote battery switches in one compact module
  • Each circuit rated 500A continuous and 1500A cranking for 12V and 24V systems
  • Independent 3-position manual override knob per circuit
  • Ultra-low 1.3mA off-state current draw
  • Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent
  • Expandable with optional link and cross-link busbars
  • EGIS XD Series Flex 2 dual-circuit module (ACR + remote battery switch) with tinned wire leads
  • Two 3-position manual override knobs
  • Protective terminal cover
  • Stainless steel studs and self-locking flanged nuts

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorTinned wire leads
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What do the two circuits do?
One circuit is an automatic charging relay that combines two battery banks while charging and isolates them when no charge source is present; the other acts as a mechanical-equivalent remote battery switch for isolating a bank on demand.
What is the difference between this and the ACR plus relay version?
On this model the second circuit functions as a remote battery disconnect (a mechanical-equivalent switch) rather than a general switched relay, suiting installations that need a dedicated isolation switch alongside the ACR.
What current and voltage is each circuit rated for?
Each circuit operates across 8 to 36V DC, suiting both 12V and 24V systems, and is rated for 500A continuous current with up to 1500A during engine cranking.
Does each circuit have its own manual override?
Yes. Each circuit has an independent 3-position manual override knob that can force that circuit open or closed and lock it in either state.
