EGIS
EGIS e-Series 350A Battery Selector Switch with AFD, Off/1/Both/2
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

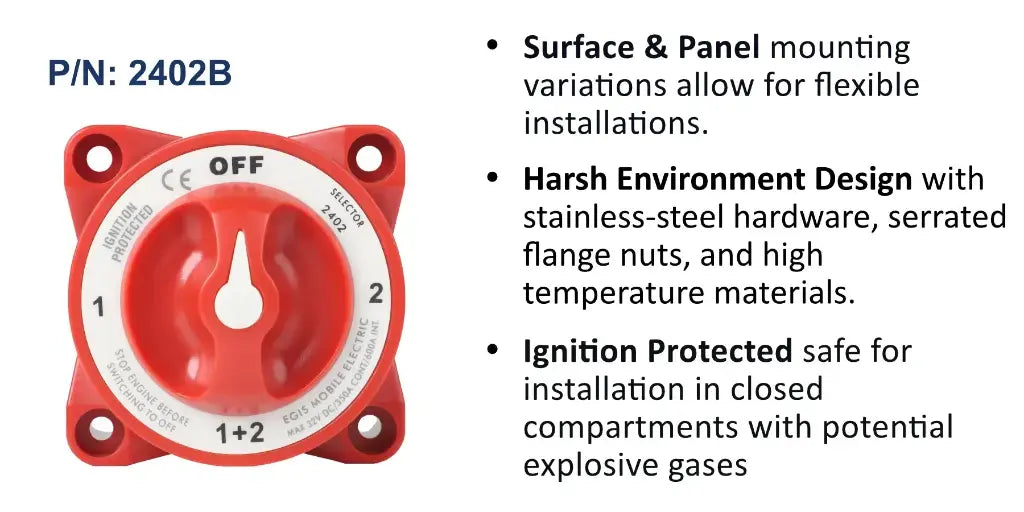

The EGIS e-Series 2402 is a medium-duty four-position battery selector switch rated at 350A continuous and 600A intermittent, fitted with alternator field disconnect (AFD). The AFD contacts open the alternator field circuit before the main battery contacts break, protecting the alternator from damaging voltage spikes if the switch is operated while the engine is running.
Its Off/1/Both/2 positions manage two battery banks, while a 32-48V DC rating and IP66 sealing make it suitable for harsh, high-vibration 12V and 24V installations. The switch is ignition protected, uses serrated flange lock-nuts to resist cable-terminal loosening, and offers surface and rear-panel mounting as a drop-in replacement for legacy OEM switches. Backed by a 4-year warranty.
PRODUCT DETAILS
- Alternator field disconnect (AFD) protects the alternator
- Four-position Off/1/Both/2 battery selection
- 350A continuous, 600A intermittent current rating
- 32-48V DC rating suits 12V and 24V systems
- Ignition protected, sealed to IP66
- Surface and rear-panel mounting options
- Drop-in replacement for legacy OEM switches
- 4-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 350 A |
| Intermittent Current | 600 A |
| Max Voltage | 32-48 V DC |
| Live Switching Rating | 25 A |
| Alternator Field Disconnect | Yes |
Mechanical
| Actuator | Rotary selector (Off/1/Both/2) |
| Mounting | Surface and rear panel |
| Mounting Hole Screws | 1/4" (M6) |
| Ingress Protection | IP66 |
| Ignition Protected | Yes |
