EGIS 100A Dual Busbar, 2 x 5 Circuit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

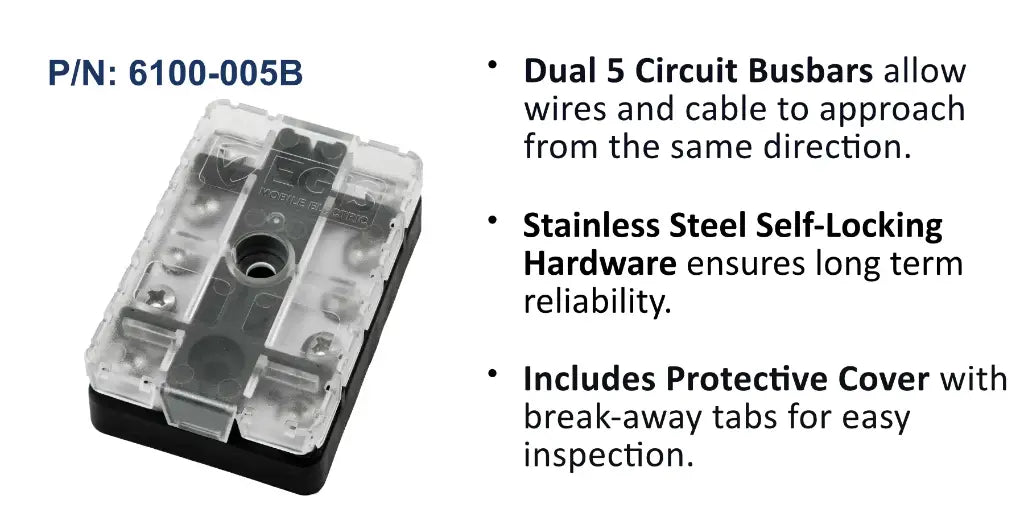

The EGIS 100A dual busbar combines two electrically isolated busbars in one compact housing, each offering five screw terminals, for distributing both positive and negative or two separate circuits from a single mounting. Rated to a maximum of 80Vdc, the tin-plated copper conductors deliver low voltage drop in tight installations.
Stainless steel self-locking hardware ensures long-term reliability under vibration. Optional transparent covers (sold separately) are available to guard against accidental shorts and incidental contact.
PRODUCT DETAILS
- 100A rated, 80Vdc maximum
- Two isolated banks of five screw terminals
- Compact single-mount dual busbar
- Tin-plated copper for minimal voltage drop
- Stainless steel self-locking hardware
- Optional transparent covers available
- 100A dual busbar
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 100A |
| Maximum Voltage | 80Vdc |
Mechanical
| Configuration | 2 isolated busbars, 5 screw terminals each |
| Mounting Holes | 4 x #10 (M5) and 2 x 1/4 inch (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
Environmental
| Operating Temperature | -40C to 125C |
