EGIS XD Flex 2 ACR + Relay Dual 500A 12/24V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS XD Flex 2 Dual packs two independent high-current circuits, an automatic charging relay and a switched relay, into a single compact bi-stable module, replacing two separate relays and the link cabling between them. The ACR circuit combines two battery banks while a charge source is present and isolates them when charging stops, while the second relay handles load switching, making common dual-battery management easy to implement. Each circuit carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC range, and both functions are programmable via dip switches.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoids draw just 1.3mA in the off state, and each circuit has its own 3-position manual override knob that can force it open or closed and lock it there. Front-facing LEDs report status with remote LED replica outputs, the dip switches sit under an included protective cover, and the module can be expanded with optional link and cross-link busbars. This version ships with tinned wire leads.
PRODUCT DETAILS
- Two independent circuits, an ACR and a switched relay, in one compact module
- Replaces two separate relays and their interconnect cabling
- Each circuit rated 500A continuous and 1500A cranking for 12V and 24V systems
- Independent 3-position manual override knob per circuit
- Ultra-low 1.3mA off-state current draw
- Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent
- Expandable with optional link and cross-link busbars

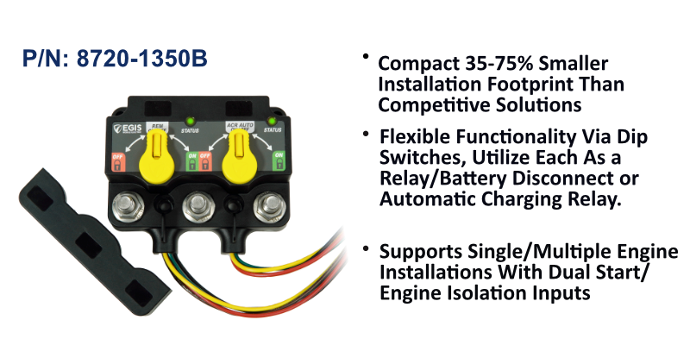

- EGIS XD Series Flex 2 dual-circuit module (ACR + relay) with tinned wire leads
- Two 3-position manual override knobs
- Protective terminal cover
- Stainless steel studs and self-locking flanged nuts
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A |
| Max Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Tinned wire leads |
| Ingress Protection | IP67 / IP6K9K |
