EGIS HD-Series 600A Battery Switch, On/Off
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

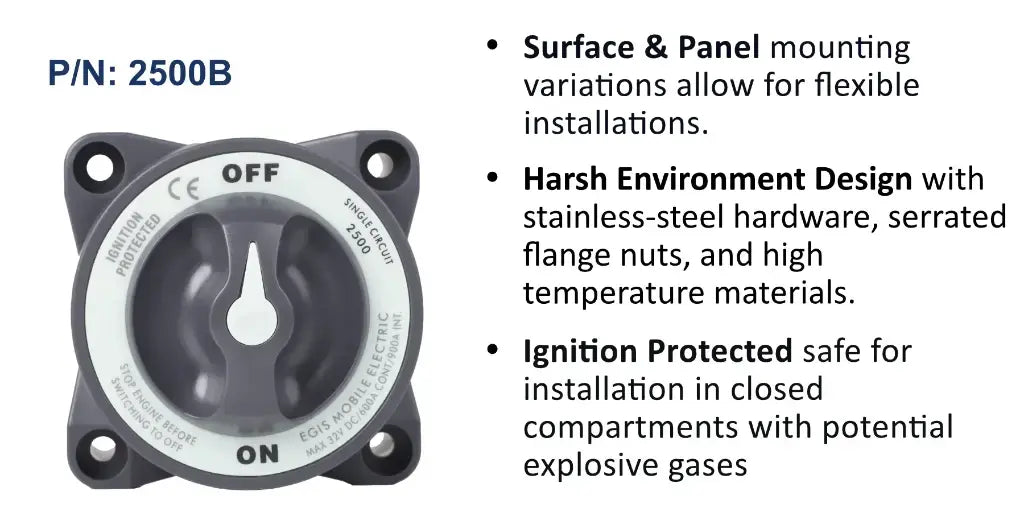

The EGIS HD-Series 2500 is a max-duty battery disconnect switch rated at 600A continuous and 900A intermittent, with simple on/off operation. It isolates and connects very high-amperage loads in 12V and 24V systems, providing a robust, serviceable alternative to fuses for main battery disconnection on demanding installations.
Rated to 32V DC and sealed to IP66, the switch is ignition protected and built for harsh, high-vibration environments. Serrated flange lock-nuts resist cable-terminal loosening, and surface and rear-panel mounting options make it a straightforward drop-in replacement for legacy OEM switches. Backed by a 4-year warranty.
PRODUCT DETAILS
- Simple ON/OFF battery disconnect
- 600A continuous, 900A intermittent current rating
- 32V DC rating suits 12V and 24V systems
- Ignition protected, sealed to IP66
- Serrated flange lock-nuts resist vibration loosening
- Surface and rear-panel mounting options
- Drop-in replacement for legacy OEM switches
- 4-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 600 A |
| Intermittent Current | 900 A (5 min) |
| Max Voltage | 32 V DC |
Mechanical
| Mounting | Surface and rear panel |
| Ingress Protection | IP66 |
| Ignition Protected | Yes |
