EGIS
EGIS m-Series 300A Battery Switch, On/Off, Knob Actuator
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

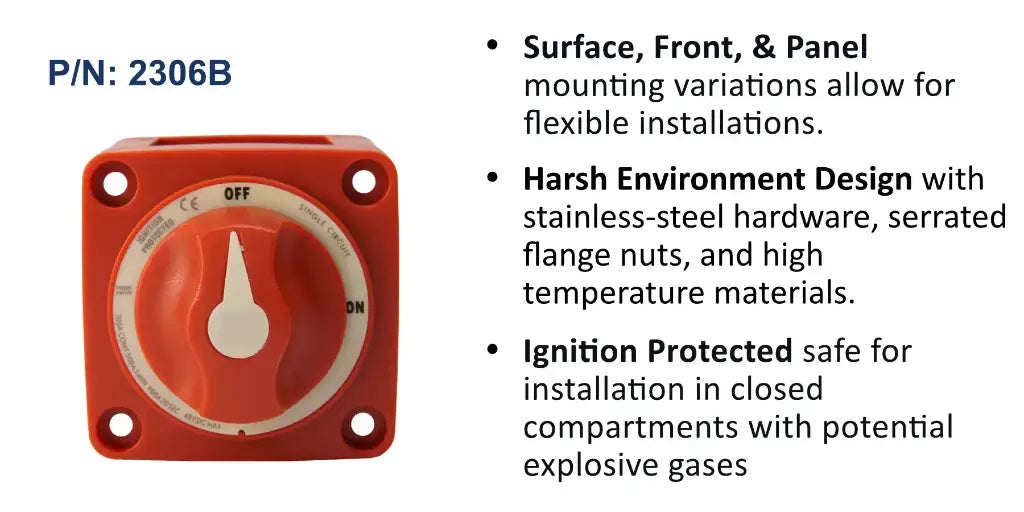

The EGIS m-Series 2306 is a compact battery disconnect switch rated at 300A continuous and 500A intermittent, operated by a knob actuator for simple on/off control. It isolates and connects high-amperage loads in 12V and 24V systems, providing a robust, serviceable alternative to fuses for main battery disconnection.
Rated to 32-48V DC and sealed to IP66, the switch is ignition protected and built for harsh, high-vibration environments. Serrated flange lock-nuts resist cable-terminal loosening, and surface, front and rear-panel mounting options make it a straightforward drop-in replacement for legacy OEM switches. Backed by a 4-year warranty.
PRODUCT DETAILS
- 300A continuous, 500A intermittent current rating
- Knob actuator for simple ON/OFF operation
- 32-48V DC rating suits 12V and 24V systems
- Ignition protected, sealed to IP66
- Serrated flange lock-nuts resist vibration loosening
- Surface, front and rear-panel mounting options
- Drop-in replacement for legacy OEM switches
- 4-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 300 A |
| Intermittent Current | 500 A |
| Max Voltage | 32-48 V DC |
| Live Switching Rating | 25 A |
Mechanical
| Actuator | Knob |
| Mounting | Surface, front and rear panel |
| Mounting Hole Screws | #10 |
| Ingress Protection | IP66 |
| Ignition Protected | Yes |
