EGIS Power Post Plus, M8 (5/16 inch) Stud with 10 M4 Screw Terminals
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

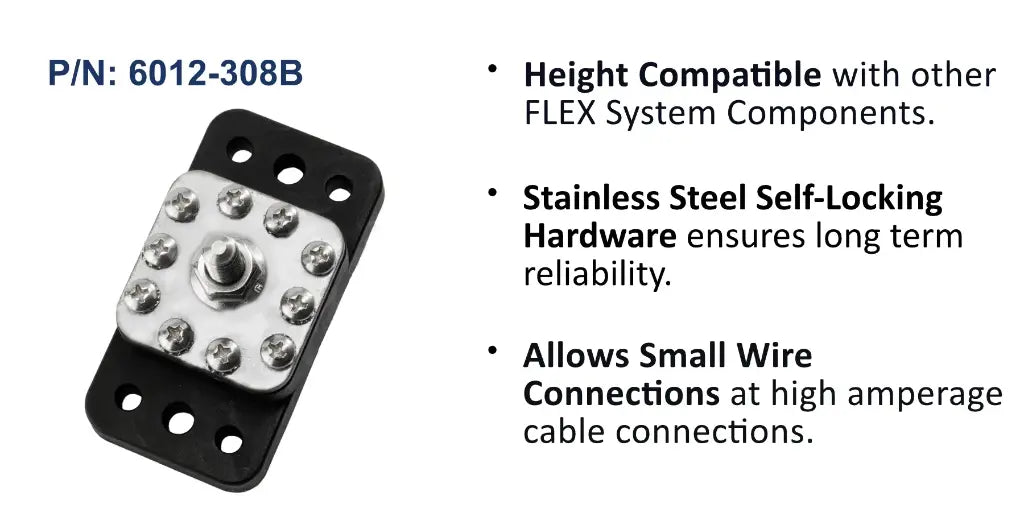

The EGIS Power Post Plus combines a single M8 (5/16 inch) stud for a heavy main cable with ten M4 (#8) screw terminals for low-current branch circuits, giving a compact one-piece feed and distribution point. The tin-plated copper construction delivers superior electrical performance with minimal voltage drop.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability under vibration. The profile is FLEX system height compatible for connection to other EGIS FLEX components.
PRODUCT DETAILS
- One M8 (5/16 inch) stud plus ten M4 (#8) screw terminals
- Combined high-current feed and branch distribution
- Insert-molded stud connection for durability
- Tin-plated copper for minimal voltage drop
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- FLEX system height compatible
- Power Post Plus, M8 with 10 M4 screw terminals
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Main Stud | M8 (5/16 inch) |
| Screw Terminals | 10 x M4 (#8) |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| FLEX System Compatible | Yes |
