Description

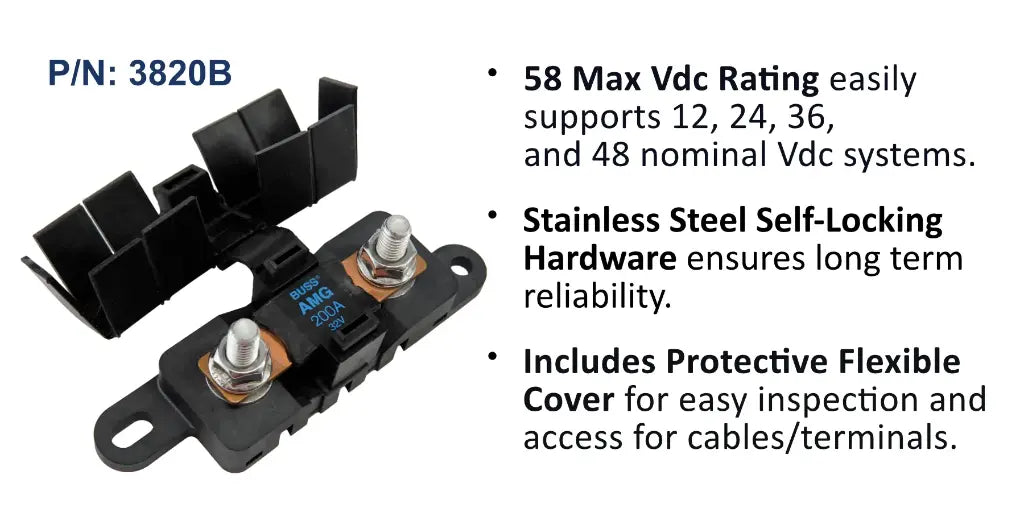

The EGIS MEGA Fuse Block protects an individual high-current circuit from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent damage. High-tolerance mounting hole provisions allow fast installation across a variety of mounting plate preparations, and the block can be mounted adjacent to battery systems regardless of location. M8 stainless steel self-locking hardware and serrated flange lock nuts keep cable terminals secure in high-vibration environments.
A flexible black cover provides full 360-degree access for cables and terminals while preventing inadvertent short circuits, and the block carries an IP66 ingress protection rating and is CE marked, with a 58V DC maximum rating that suits 12, 24, 36 and 48V nominal systems. Interlocking dove-tail connections in the composite base allow side-by-side stacking, and the input stud length supports a common busbar across stacked blocks. Designed and made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- Single-circuit MEGA/AMG fuse block for over-current protection
- M8 stainless steel self-locking hardware
- Flexible black cover with full 360-degree terminal access
- 58V DC maximum, suiting 12, 24, 36 and 48V systems
- Rated IP66 and CE marked
- Adjacent side-by-side stacking via dove-tail connections
- Input stud length supports a common busbar across stacked blocks
- MEGA/AMG fuse block
- Black flexible protective cover
- M8 stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 58V DC |
| Fuse Type | MEGA / AMG |
| CE Marked | Yes |
Mechanical
| Circuits | 1 |
| Hardware | M8 stainless steel self-locking |
| Cover | Black flexible cover |
| Stacking | Adjacent dove-tail side-by-side |
| Ingress Protection | IP66 |
No videos available for this product.
