Description

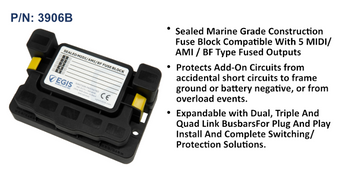

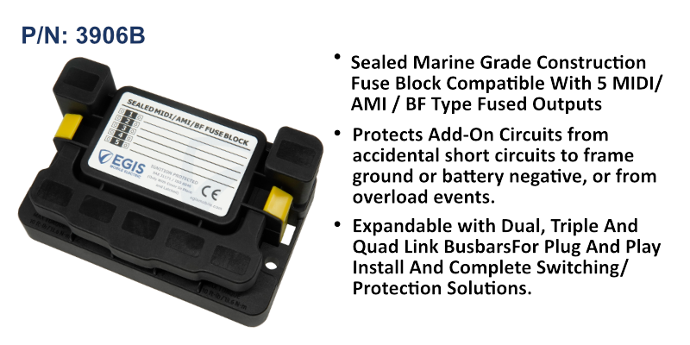

The EGIS MIDI 5-Way Sealed Fuse Block distributes and protects up to five branch circuits, with each output protected by a MIDI/AMI fuse up to 200 amps and a total continuous rating of 500 amps. Sealed to IP66 and IP6K9K with a Gore-Tex vent and ignition protected to SAE J1171, it is ideal for modern vessel installations where the block may be mounted in exposed locations. Tin-plated copper busbars ensure superior electrical performance with minimal voltage drop, and large mounting holes accept 1/4 inch (M6) attachment hardware.
The latching protective cover guards the output studs and cable terminals against inadvertent shorts, carries a label for naming fused circuits, and stores two spare fuses and four spare screws. Stainless steel self-locking hardware maintains reliable connections in high-vibration conditions, and the glass-filled nylon construction is built for longevity. The block is FLEX system compatible, expanding with dual, triple and quad link busbars alongside EGIS MT Series and XD Series components. Designed and made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- Five protected output circuits with M8 inputs and M6 outputs
- Accepts MIDI/AMI fuses up to 200A, 500A total continuous
- Sealed to IP66 and IP6K9K, ignition protected to SAE J1171
- Tin-plated copper busbars for minimal voltage drop
- Latching cover with circuit label, stores two spare fuses and four screws
- Stainless steel self-locking hardware
- FLEX system compatible via dual, triple and quad link busbars
- MIDI 5-way sealed fuse block
- Latching protective cover with circuit label
- Two spare fuses and four spare screws (stored in cover)
- Stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500A |
| Maximum MIDI/AMI Fuse Value | 200A |
| Fuse Type | MIDI / AMI |
Mechanical
| Output Circuits | 5 |
| Input Stud Size | M8 |
| Output Stud Size | M6 |
| Ingress Protection | IP66 and IP6K9K |
| Ignition Protected | Yes, SAE J1171 |
