Description

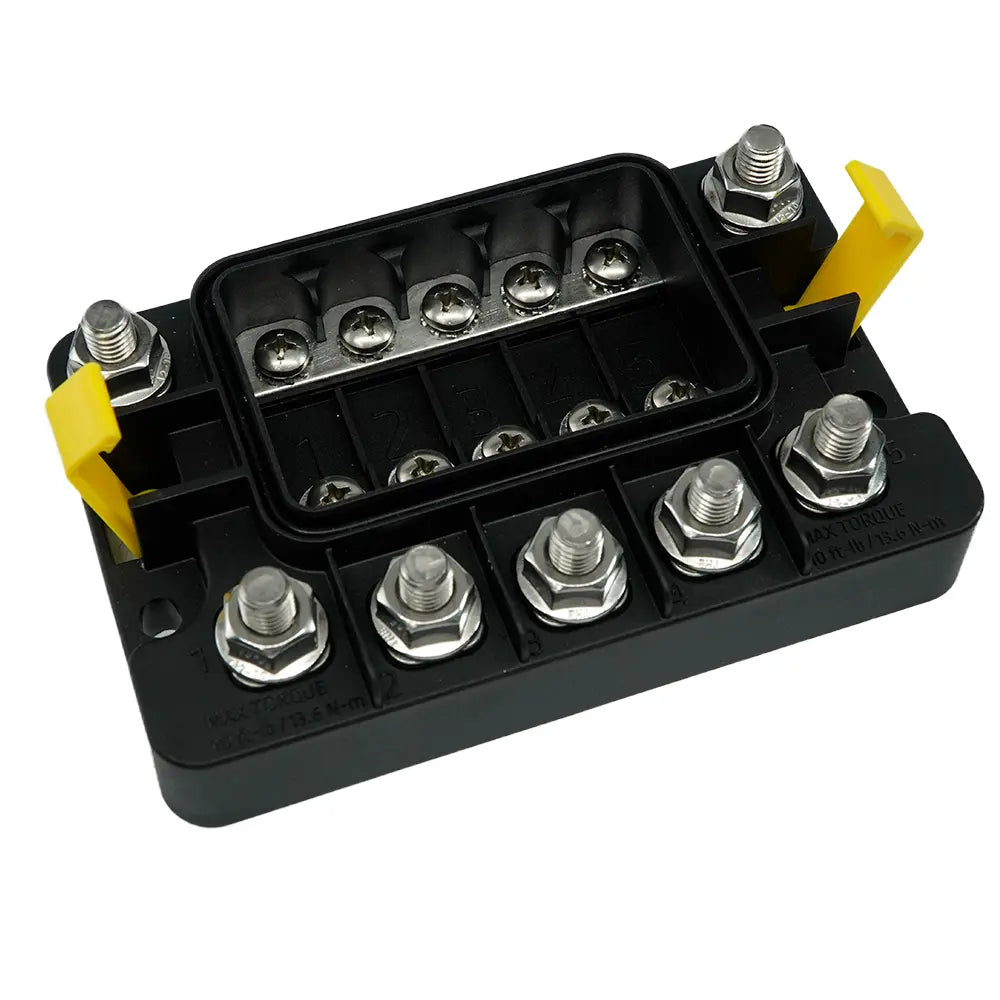

The EGIS MIDI 5-Way Sealed Fuse Block protects up to five branch circuits using M8 studs on both the input and the outputs, allowing heavier output cabling than M6 designs. Each output is protected by a MIDI/AMI fuse up to 200 amps, with a total continuous rating of 500 amps. Sealed to IP66 and IP6K9K with a Gore-Tex vent and ignition protected to SAE J1171, it can be mounted in demanding locations on modern vessels and vehicles. Tin-plated copper busbars deliver minimal voltage drop, and large mounting holes accept 1/4 inch (M6) attachment hardware.
A latching protective cover shields the output studs and cable terminals from inadvertent shorts, carries a label for naming fused circuits, and stores two spare fuses and four spare screws. Stainless steel self-locking hardware ensures vibration-resistant connections, and the glass-filled nylon housing offers long service life. The block is FLEX system compatible, expanding with dual, triple and quad link busbars alongside EGIS MT Series and XD Series products. Designed and made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- Five protected output circuits with M8 inputs and M8 outputs
- Accepts MIDI/AMI fuses up to 200A, 500A total continuous
- M8 outputs accept heavier output cabling than M6 designs
- Sealed to IP66 and IP6K9K, ignition protected to SAE J1171
- Tin-plated copper busbars for minimal voltage drop
- Latching cover with circuit label, stores two spare fuses and four screws
- FLEX system compatible via dual, triple and quad link busbars
- MIDI 5-way sealed fuse block
- Latching protective cover with circuit label
- Two spare fuses and four spare screws (stored in cover)
- Stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500A |
| Maximum MIDI/AMI Fuse Value | 200A |
| Fuse Type | MIDI / AMI |
Mechanical
| Output Circuits | 5 |
| Input Stud Size | M8 |
| Output Stud Size | M8 |
| Ingress Protection | IP66 and IP6K9K |
| Ignition Protected | Yes, SAE J1171 |
