EGIS 140A Mini Automatic Charging Relay 12/24V

£139.46
Tax included.
6601
Compact 140A voltage-sensing automatic charging relay that auto-senses both 12V and 24V systems. Combines battery banks while charging and isolates them otherwise, in a harsh-environment build with stainless-steel self-locking hardware.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

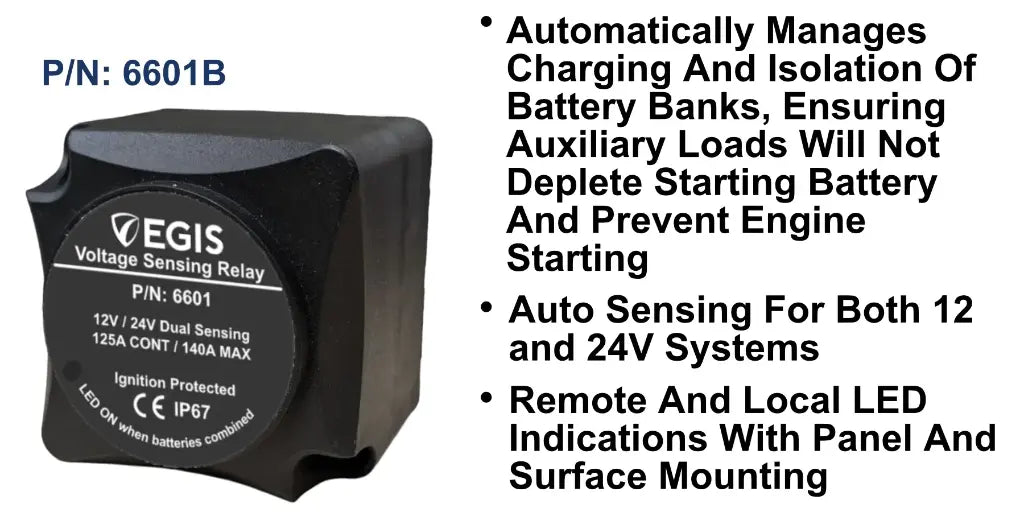

The EGIS 6601 is a compact voltage-sensing automatic charging relay (ACR) rated at 140A for battery charge management. It automatically combines a start and auxiliary battery when a charge source is present and isolates them when none is, helping prevent dead start batteries. Auto-sensing operation means a single unit works on both 12V and 24V systems, simplifying stocking and installation.

Built for harsh environments, the 6601 uses high-temperature materials and stainless-steel self-locking hardware so it can be mounted almost anywhere on a vehicle or vessel. Standard or customised weather-proof labelling is available. Its small footprint suits space-restricted installations where a full-size ACR will not fit.

PRODUCT DETAILS

  • 140A continuous current rating
  • Auto-sensing operation for both 12V and 24V systems
  • Automatic combine and isolate to protect the start battery
  • Compact footprint for space-restricted installations
  • Harsh-environment build with high-temperature materials
  • Stainless-steel self-locking hardware
  • 1 x EGIS 6601 mini automatic charging relay

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current140 A
System Voltage12V and 24V (auto-sensing)

No videos available for this product.

Does the 6601 work on both 12V and 24V systems?
Yes. The 6601 auto-senses system voltage and operates on both 12V and 24V systems, so a single unit covers either application.
What does the 6601 do?
It is a voltage-sensing automatic charging relay that combines a start and auxiliary battery when a charge source is present and isolates them when none is, helping prevent dead start batteries.
Can it be mounted in exposed locations?
Yes. It is built with high-temperature materials and stainless-steel self-locking hardware for harsh environments, with standard or customised weather-proof labelling available.
