EGIS Mini Battery Switch / Circuit Breaker 30A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

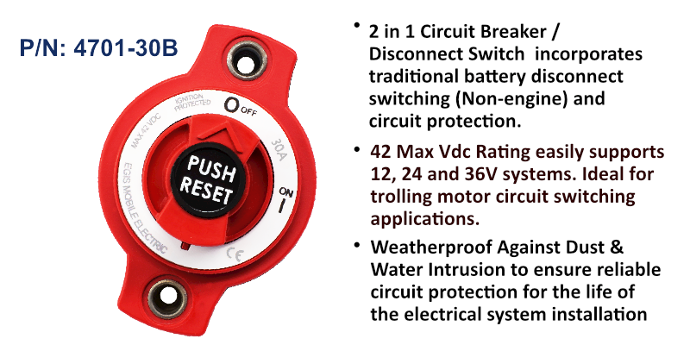

The EGIS 4701 combines a circuit breaker and a disconnect switch in a single compact panel-mount unit. Rated at 30A and 42 VDC, it provides trip-free over-current protection while an easy on/off rotary switch lets you isolate the circuit and clearly see the switch position. This two-in-one design saves space and reduces the number of components needed on a panel.
Built for harsh environments, the 4701 is sealed to IP66 against dust and moisture, ignition protected against inadvertent shorts, and made in the USA from high quality components. Stainless steel self-locking hardware resists corrosion and vibration, and the breaker offers a high switching cycle endurance of 3,000 to 5,000 operations for long service life.
PRODUCT DETAILS
- Two-in-one circuit breaker and disconnect switch
- Rated 30A at 42 VDC
- IP66 sealed against dust and moisture
- Easy on/off rotary switch with clear position
- Trip-free over-current protection
- Stainless steel self-locking hardware
- Switching cycle endurance of 3,000 to 5,000 operations
- 1 x EGIS 4701 mini circuit breaker / disconnect switch, 30A
- Mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 30A |
| Voltage Rating | 42 VDC max |
| Interrupt Capacity | 3,000A at 14 VDC, 1,500A at 28 VDC |
Mechanical
| Mounting | Panel mount |
| Ingress Protection | IP66 |
| Reset Type | Trip-free with manual on/off rotary switch |
