EGIS
EGIS MRBF Terminal Fuse 175A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

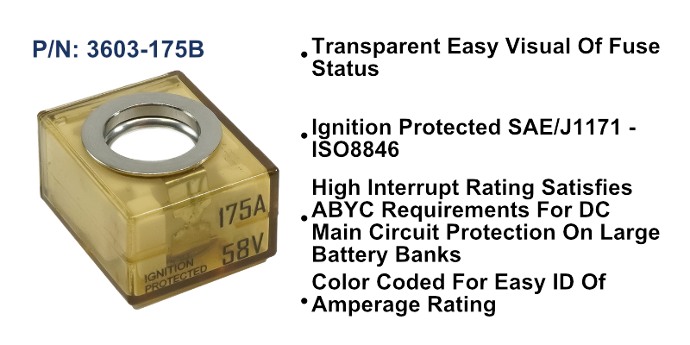

The EGIS MRBF Terminal Fuse rated at 175A protects electrical circuits against short circuit events and over-current loads, preventing the wire-insulation overheating that leads to system damage. Its high interrupt current safely protects circuits connected to large paralleled battery banks with significant available power, while the ignition-protected design makes it safe for installation in closed compartments where explosive gases may be present.
Sealed against dust and water intrusion and rated to 58V DC, the fuse easily supports 12 to 48V nominal applications and is built with robust, corrosion-resistant materials for harsh marine and mobile environments. The amperage is colour-coded for easy identification, and the fuse is compatible with the EGIS single and dual MRBF terminal fuse blocks. It is made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- 175A continuous current rating
- 58V DC maximum voltage, suits 12 to 48V nominal systems
- High interrupt rating: 10,000A at 14V DC
- Sealed to IP66 against dust and water intrusion
- Ignition protected for use in enclosed compartments
- Colour-coded body for fast amperage identification
- Compatible with EGIS single and dual MRBF terminal fuse blocks
- 1 x MRBF Terminal Fuse, 175A
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current Rating | 175 A |
| Maximum Voltage | 58 V DC |
| Fuse Type | MRBF terminal fuse |
| Interrupt Rating at 14 V DC | 10,000 A |
| Interrupt Rating at 48 V DC | 5,000 A |
| Interrupt Rating at 58 V DC | 2,000 A |
Mechanical
| Ingress Protection | IP66 |
| Ignition Protected | Yes |
