EGIS

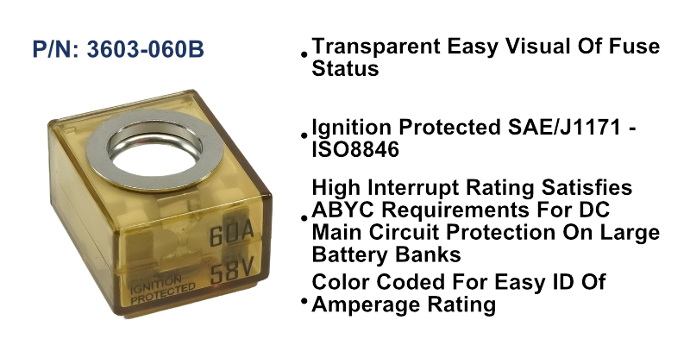

EGIS MRBF Terminal Fuse 60A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS MRBF terminal fuse provides reliable protection for electrical circuits against short-circuit events and over-current loads, helping to prevent wire insulation from overheating. Rated at 60 A with a 58 V DC maximum voltage rating, it comfortably supports 12, 24 and 48 V nominal applications. The fuse is sealed against dust and water intrusion to an IP66 rating and is ignition protected, making it safe for installation in closed compartments where explosive gases may be present.
Built to a marine grade, corrosion-resistant standard with shock and vibration resistance, the fuse offers a high interrupt rating to safely protect circuits connected to large paralleled battery banks. It is colour coded for easy amperage identification and is compatible with the EGIS single and dual MRBF terminal fuse blocks. The fuse is American made and backed by a four year warranty.
PRODUCT DETAILS
- 60 A continuous current rating
- 58 V DC maximum voltage rating, suits 12 to 48 V systems
- High interrupt rating for large paralleled battery banks
- Sealed to IP66 against dust and water
- Ignition protected for closed compartments
- Colour coded for easy amperage identification
- Compatible with EGIS single and dual MRBF terminal fuse blocks
- EGIS MRBF terminal fuse (60 A)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 60A |
| Voltage Rating | 58V DC |
| Fuse Type | MRBF terminal fuse |
| Interrupt Rating @ 14 VDC | 10,000 A |
| Interrupt Rating @ 48 VDC | 5,000 A |
| Interrupt Rating @ 58 VDC | 2,000 A |
Mechanical
| Ingress Protection | IP66 |
