EGIS MT Series 9+3 Sealed Fuse Block, 250A

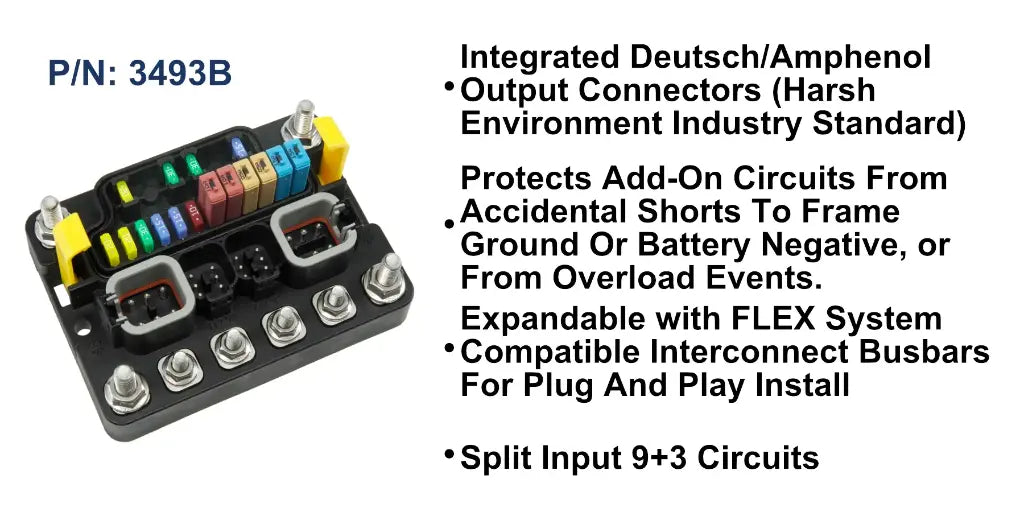

The EGIS MT Series Sealed Distribution Block is an industry-first connectorised marine fuse and circuit-breaker block. This 9+3 version splits the twelve outputs across two input buses of nine and three positions, while standard integrated Deutsch and Amphenol power connectors create highly reliable electrical systems and significantly reduce the assembly failures associated with traditional screw terminations during and after boat production. Each output protects add-on circuits from accidental short circuits to frame ground or battery negative and from overload events, and the block accepts both ATM fuses and ATM Type III circuit breakers while still allowing the sealing cover to be fitted.

Built for harsh environments, the block is sealed to IP66 and IP6K9K with high-temperature materials so it can be mounted almost anywhere, and stainless steel cable-lug studs with self-locking flanged nuts resist corrosion. An integrated high-amp ground busbar under a protective cover supports a return cable to battery negative, four spare fuse slots are stored under the cover, and the system is expandable with dual, triple and quad link busbars for complete switching and protection solutions. It is made in the U.S.A. and backed by a five year warranty.
