EGIS MT Series 12-Way Sealed Fuse Block, 250A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

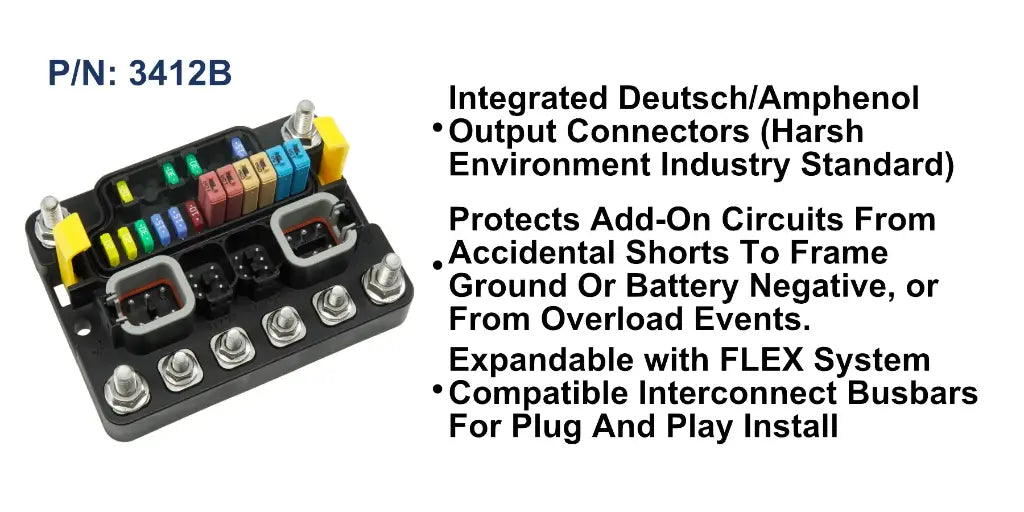

The EGIS MT Series Sealed Distribution Block is an industry-first connectorised marine fuse and circuit-breaker block. Standard integrated Deutsch and Amphenol power connectors create highly reliable electrical systems and significantly reduce the assembly failures associated with traditional screw terminations during and after boat production. Each of the twelve outputs protects add-on circuits from accidental short circuits to frame ground or battery negative and from overload events, and the block accepts both ATM fuses and ATM Type III circuit breakers while still allowing the sealing cover to be fitted.
Built for harsh environments, the block is sealed to IP66 and IP6K9K with high-temperature materials so it can be mounted almost anywhere, and stainless steel cable-lug studs with self-locking flanged nuts resist corrosion. An integrated high-amp ground busbar under a protective cover supports a return cable to battery negative, four spare fuse slots are stored under the cover, and the system is expandable with dual, triple and quad link busbars for complete switching and protection solutions. It is made in the U.S.A. and backed by a five year warranty.
PRODUCT DETAILS
- 12 connectorised output positions for fuses or circuit breakers
- 250A total output current with an integrated 250A ground return busbar
- Sealed to IP66 and IP6K9K for harsh marine environments
- Ignition protected per SAE J1171
- Integrated Deutsch and Amphenol connectors eliminate screw-terminal errors
- Accepts ATM fuses and ATM Type III circuit breakers under the sealing cover
- Stainless steel studs and self-locking nuts, plus four spare fuse slots
- 1 x MT Series 12-Position Sealed Distribution Block
- Integrated ground return busbar
- Protective sealing cover
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Output Current | 250 A |
| Ground Return Busbar Rating | 250 A |
| Maximum Fuse / Circuit Breaker Value | 30 A |
| Compatible Protection | ATM fuses and ATM Type III circuit breakers |
Mechanical
| Output Positions | 12 |
| Ground Return Bus | Yes |
| Output Connectors | Integrated Deutsch / Amphenol |
| Mounting Hardware | 1/4-20 / M6 |
| Ingress Protection | IP66 / IP6K9K |
| Ignition Protection | Yes, per SAE J1171 |
