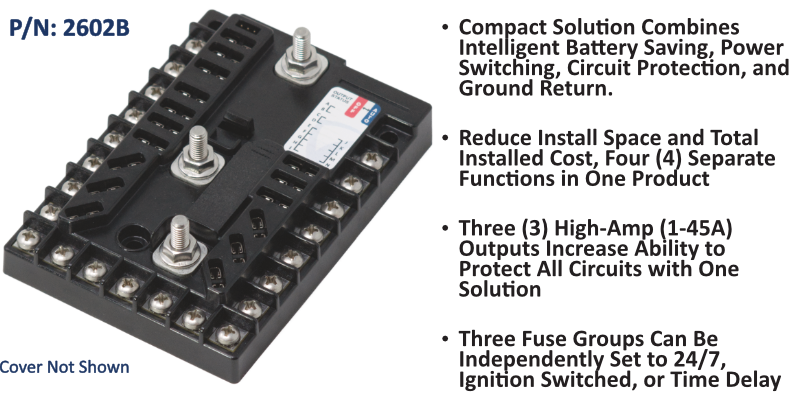

EGIS PDM Power Distribution Module, 14 Circuit Plus Ground, 175A, 12V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS PDM is an advanced 12V power distribution module that combines intelligent battery protection, power switching, circuit protection and a ground return bus in a single unit, rated to 175A. It provides three high-amp fused output groups (each 1 to 45A) with an LED indicator for every output reporting on, off, blown fuse, over and under voltage, and over-temperature conditions. Off-delay timing and other settings are configurable per output, and optional under and over voltage protection can be enabled.
A ground return block receives up to fourteen ground wires and provides one high-amp return to the battery. Robust M6 stainless steel input and output terminals with self-locking nuts and tin-plated copper pads ensure reliable connections, and the module can drive up to 31 fused outputs when paired with RT or CT Series fuse blocks. This version is supplied without the manual kill switch.
PRODUCT DETAILS
- 12V power distribution module rated to 175A
- Combines battery protection, switching, circuit protection and ground bus
- Three high-amp fused output groups (1-45A each)
- LED indicator per output for status and faults
- Configurable off-delay and voltage protection settings
- Ground return block for up to 14 wires
- M6 stainless steel terminals with tin-plated copper pads
- PDM 14 circuit plus ground module
- M6 stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| System Voltage | 12V |
| Current Rating | 175A |
| Output Groups | 3 high-amp fused groups |
| Output Current Per Group | 1 to 45A |
| Circuits | 14 plus ground |
Features
| Battery Protection | Intelligent, with optional under/over voltage protection |
| Status Indication | LED per output (on, off, blown fuse, over/under voltage, over-temperature) |
| Ground Return | Block for up to 14 wires, single high-amp return |
Mechanical
| Terminals | M6 stainless steel with tin-plated copper pads |
General
| Expandable Outputs | Up to 31 fused outputs with RT or CT Series fuse blocks |
