EGIS PDM Power Distribution Module, 14 Circuit Plus Ground, 175A, 12V, With Kill Switch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

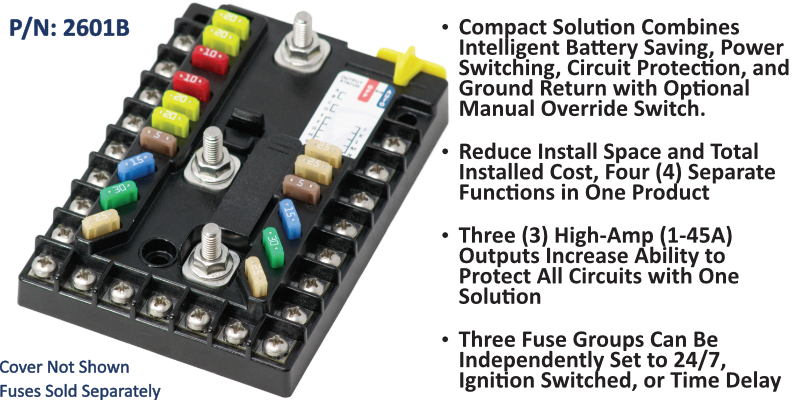

The EGIS PDM is an advanced 12V power distribution module that combines intelligent battery protection, power switching, circuit protection and a ground return bus in a single unit, rated to 175A. It provides three high-amp fused output groups (each 1 to 45A) with an LED indicator for every output reporting on, off, blown fuse, over and under voltage, and over-temperature conditions. Off-delay timing and other settings are configurable per output, and optional under and over voltage protection can be enabled.
This version adds a manual override kill switch for isolating all auxiliary loads, including any outputs configured for 24/7 operation. A ground return block receives up to fourteen ground wires and provides one high-amp return to the battery. Robust M6 stainless steel input and output terminals with self-locking nuts and tin-plated copper pads ensure reliable connections, and the module can drive up to 31 fused outputs when paired with RT or CT Series fuse blocks.
PRODUCT DETAILS
- 12V power distribution module rated to 175A
- Combines battery protection, switching, circuit protection and ground bus
- Three high-amp fused output groups (1-45A each)
- Manual override kill switch
- LED indicator per output for status and faults
- Configurable off-delay and voltage protection settings
- M6 stainless steel terminals with tin-plated copper pads
- PDM 14 circuit plus ground module with kill switch
- M6 stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| System Voltage | 12V |
| Current Rating | 175A |
| Output Groups | 3 high-amp fused groups |
| Output Current Per Group | 1 to 45A |
| Circuits | 14 plus ground |
Features
| Battery Protection | Intelligent, with optional under/over voltage protection |
| Status Indication | LED per output (on, off, blown fuse, over/under voltage, over-temperature) |
| Manual Override | Kill switch fitted |
| Ground Return | Block for up to 14 wires, single high-amp return |
Mechanical
| Terminals | M6 stainless steel with tin-plated copper pads |
General
| Expandable Outputs | Up to 31 fused outputs with RT or CT Series fuse blocks |
