Description

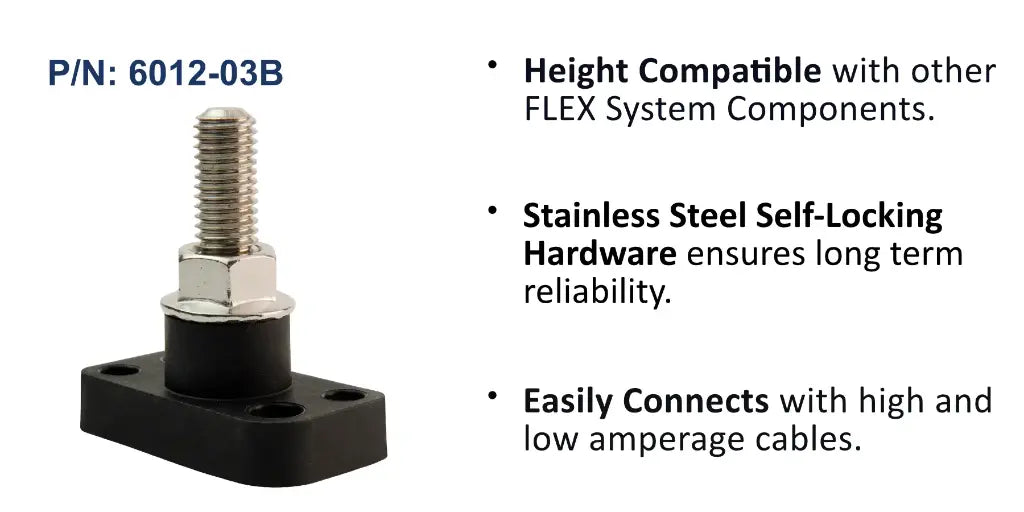

The EGIS Power Post provides a single M8 (5/16 inch) stud on a robust insert-molded base, giving a common high-current connection point for joining heavier cable terminations. The tin-plated copper construction delivers superior electrical performance with minimal voltage drop, and the maximum amperage is determined by the attached cables.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability under vibration. The profile is FLEX system height compatible for connection to other EGIS FLEX components.
PRODUCT DETAILS
- Single M8 (5/16 inch) stud
- Insert-molded stud connection for durability
- Tin-plated copper for minimal voltage drop
- Amperage limited only by attached cables
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- FLEX system height compatible
- Power Post, M8 (5/16 inch)
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Stud | M8 (5/16 inch) |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| FLEX System Compatible | Yes |
