EGIS Mini Power Post, M5 (#10) Stud
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

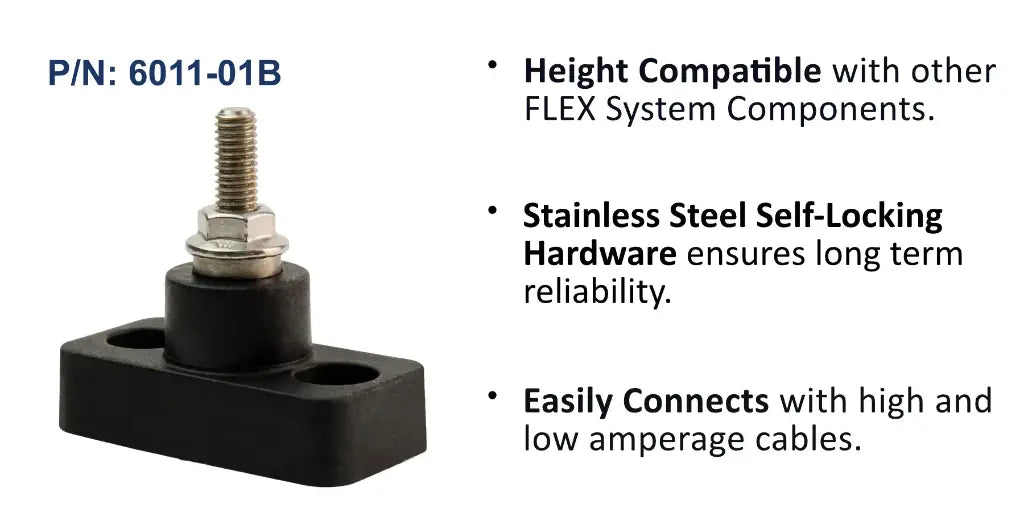

The EGIS Mini Power Post provides a single M5 (#10) stud on a robust insert-molded base, giving a clean, common connection point for joining multiple cable terminations. The tin-plated copper construction delivers superior electrical performance with minimal voltage drop, and the maximum amperage is determined by the attached cables.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability under vibration. The low profile is FLEX system height compatible for connection to other EGIS FLEX components.
PRODUCT DETAILS
- Single M5 (#10) stud
- Insert-molded stud connection for durability
- Tin-plated copper for minimal voltage drop
- Amperage limited only by attached cables
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- FLEX system height compatible
- Mini Power Post, M5 (#10)
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Stud | M5 (#10) |
| M5 Nut Torque | 65 in-lbs (7.4 N-m) recommended, 75 in-lbs (8.5 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| FLEX System Compatible | Yes |
