EGIS PT Series Time Delay Relay 30A 12V

£136.58
Tax included.
5601
Compact PT-Series time delay relay rated 30A for 12V systems. Keeps power on to add-on equipment for an adjustable time after the engine is switched off, then disconnects automatically, with an ultra-low 1.3mA off-state draw, integrated fusing and sealed construction.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

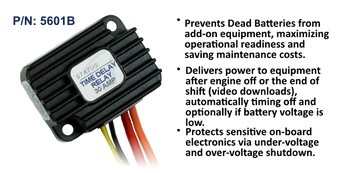

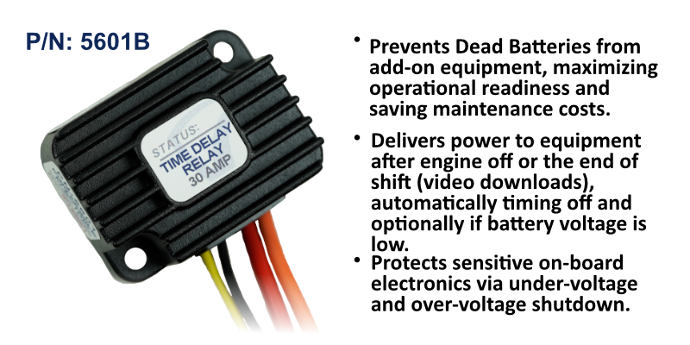

The EGIS 5601 is a compact PT-Series time delay relay (TDR) rated at 30A for 12V electrical systems. It delivers power to add-on equipment after the engine is switched off or at the end of a shift, then automatically times off after a preset delay, or earlier if battery voltage drops too low. This prevents add-on loads from draining the battery and protects sensitive on-board electronics through under-voltage and over-voltage shutdown.

An ultra-low off-state current draw of 1.3mA means it will not deplete the battery during downtime. The off time delay is adjustable from 5 seconds to 8 hours via dip switch, including a convenient short test setting, and multi-colour LEDs provide diagnostic feedback for output status and pending off events. The sealed enclosure resists dust and moisture, cross-linked wire protects against chafing and high temperatures, and integrated fusing plus over-temperature shutdown protect the circuit. A compact footprint suits space-restricted installations, and the unit is supplied with 16-inch fused and 18-inch control flying wires for installation flexibility.

PRODUCT DETAILS

  • 30A current rating for 12V systems
  • Adjustable off time delay from 5 seconds to 8 hours via dip switch
  • Battery-saver disconnect protects against dead batteries
  • Ultra-low 1.3mA off-state current draw
  • Under-voltage and over-voltage shutdown protection
  • Integrated fusing and over-temperature shutdown
  • Sealed, compact construction with cross-linked wire and LED diagnostics
  • Supplied with 16-inch fused and 18-inch control flying wires
  • 1 x EGIS 5601 time delay relay (retail packed)
  • 16-inch fused power flying wire
  • 18-inch control flying wire

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current30 A
Voltage Range8-18 V DC
Off-State Current Draw1.3 mA
Under-Voltage Protection11-12 V DC
Over-Voltage Protection17 V DC

Timing

Time Delay Range5 seconds to 8 hours (dip switch)

No videos available for this product.

No downloads available for this product.

What does the 5601 time delay relay do?
It keeps power on to add-on equipment for an adjustable period after the engine is switched off, then automatically disconnects so the equipment cannot drain the battery. It can also time off early if battery voltage drops too low.
What is the time delay range?
The off time delay is adjustable via dip switch from 5 seconds to 8 hours, including a short test setting.
What is the current rating and voltage range?
It is rated 30A for 12V systems, operating over an 8-18 V DC range, with under-voltage protection at 11-12 V DC and over-voltage protection at 17 V DC.
How is it wired?
The relay is supplied with 16-inch fused and 18-inch control flying wires, with integrated fusing for short-circuit and over-current protection.
