EGIS PT Series Time Delay Relay 30A 24V (Bulk Pack)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

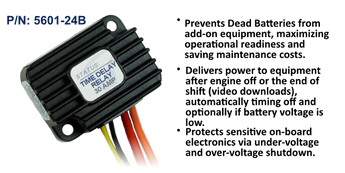

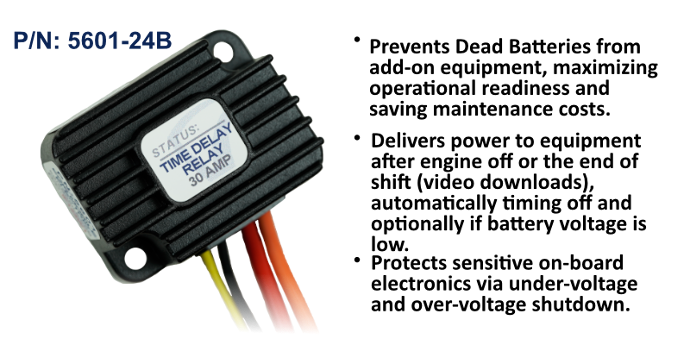

The EGIS 5601-24 is a compact PT-Series time delay relay (TDR) rated at 30A for 24V electrical systems. It delivers power to add-on equipment after the engine is switched off or at the end of a shift, then automatically times off after a preset delay, or earlier if battery voltage drops too low. This prevents add-on loads from draining the battery and protects sensitive on-board electronics through under-voltage and over-voltage shutdown.
An ultra-low off-state current draw of 1.3mA means it will not deplete the battery during downtime. The off time delay is adjustable from 5 seconds to 8 hours via dip switch, including a convenient short test setting, and multi-colour LEDs provide diagnostic feedback for output status and pending off events. The sealed enclosure resists dust and moisture, cross-linked wire protects against chafing and high temperatures, and integrated fusing plus over-temperature shutdown protect the circuit. A compact footprint suits space-restricted installations, and the unit is supplied with 16-inch fused and 18-inch control flying wires for installation flexibility. This is the bulk-packed version supplied without retail packaging.
PRODUCT DETAILS
- 30A current rating for 24V systems
- Adjustable off time delay from 5 seconds to 8 hours via dip switch
- Battery-saver disconnect protects against dead batteries
- Ultra-low 1.3mA off-state current draw
- Under-voltage and over-voltage shutdown protection
- Integrated fusing and over-temperature shutdown
- Sealed, compact construction with cross-linked wire and LED diagnostics
- Supplied with 16-inch fused and 18-inch control flying wires
- 1 x EGIS 5601-24 time delay relay (bulk packed)
- 16-inch fused power flying wire
- 18-inch control flying wire
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 30 A |
| Voltage Range | 16.0-36.0 V DC |
| Off-State Current Draw | 1.3 mA |
| Under-Voltage Protection | 22.0-24.0 V DC |
| Over-Voltage Protection | 34.0 V DC |
Timing
| Time Delay Range | 5 seconds to 8 hours (dip switch) |
