EGIS Push Button Circuit Breaker 20A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

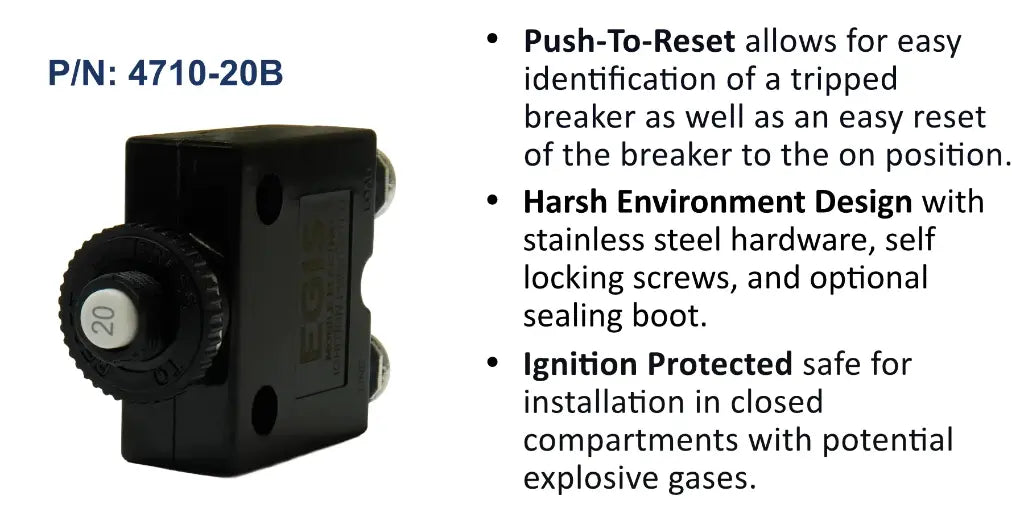

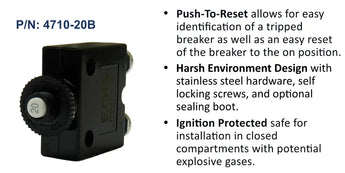

This EGIS push button circuit breaker is a thermal panel-mount breaker that delivers manual-reset overload protection for low-voltage DC circuits in marine, recreational vehicle and automotive systems. Rated at 20A and 50Vdc, it uses a Type 3 push-to-reset action so that the button stays out when the breaker trips and is simply pressed back in to restore the circuit once the fault has been cleared.
The compact body mounts through a single panel hole and connects via screw terminals, while an IP40 ingress rating and ignition-protected construction make it suitable for use around engines and in exposed equipment areas. It offers a convenient, resettable alternative to fuses for protecting pumps, lighting, electronics and other onboard accessories.
PRODUCT DETAILS
- 20A thermal push-to-reset circuit breaker
- Type 3 manual reset, button stays out when tripped
- Rated 50Vdc for 12V and 24V DC circuits
- Screw terminal connections
- IP40 ingress protection and ignition protected
- Single-hole panel mounting
- Resettable alternative to a fuse
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 20A |
| Voltage Rating DC | 50Vdc |
| Interrupt Capacity | 300A at 50Vdc |
Mechanical
| Mounting | Panel mount |
| Actuator | Type 3 push-to-reset button |
| Terminals | Screw terminals |
| Ingress Protection | IP40 |
| Ignition Protected | Yes |
