Description

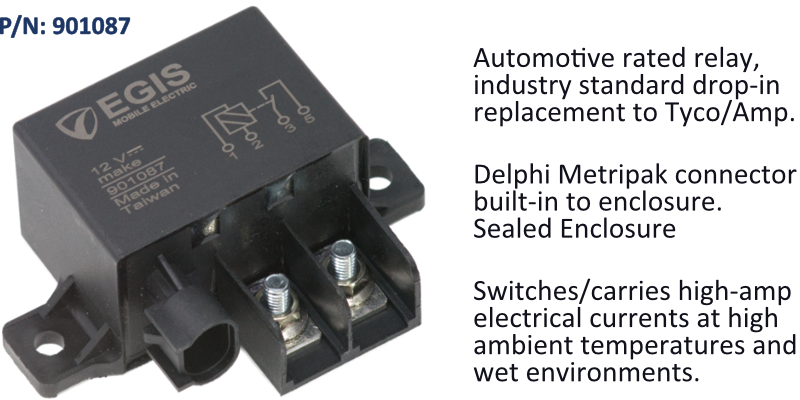

The EGIS 180A drop-in relay switches high-current 12V loads where a compact, robust relay is needed in place of a larger contactor. It carries 180A continuously at 85C and handles up to 240A intermittently, making it well suited to demanding engine, accessory and auxiliary circuits in marine, work-truck and off-road electrical systems.
The relay begins operating from a minimum control voltage of 7.2 Vdc, draws 325mA on-state at 12V and releases at 2.2 Vdc, with a live switching capability of 300A at 13.5 Vdc. Its sealed automotive construction and high-temperature rating allow installation in engine bays and other low-ventilation locations.
PRODUCT DETAILS
- 180A continuous current rating at 85C
- 240A intermittent current capability
- Live switching of 300A at 13.5 Vdc
- Operates from 7.2 Vdc minimum
- 325mA on-state current draw at 12V
- Automotive grade build for high-temperature locations
- 180A drop-in relay
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 180 A at 85C |
| Intermittent Current | 240 A at 85C |
| Switching Current | 300 A at 13.5 Vdc |
| Minimum Operate Voltage | 7.2 V DC |
| Release Voltage | 2.2 V DC |
| On-State Current Draw | 325 mA at 12V |
