Description

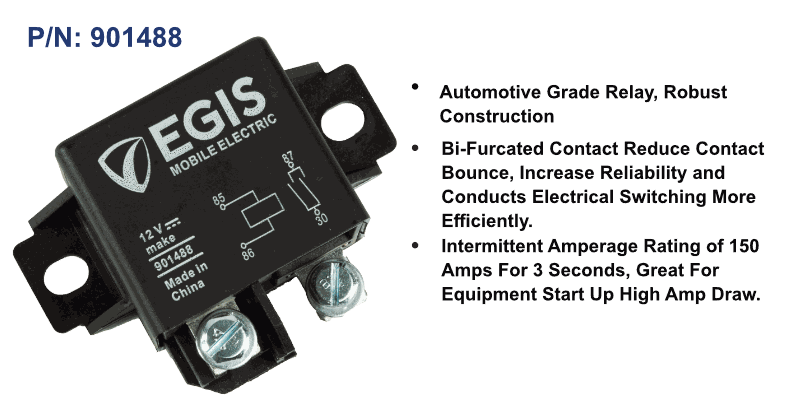

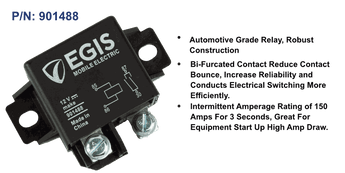

The EGIS 75A automotive relay provides dependable circuit switching for 12V systems, carrying 75A continuously at 23C and handling a 150A inrush for up to three seconds, which suits the temporary high draw of equipment start-up loads. Bifurcated contacts reduce contact bounce and wear, helping the relay switch efficiently and last over many cycles.
It is built for harsh conditions with a high 125C temperature rating, IP54 ingress protection and reinforced mounting tabs, and meets or exceeds IEC 60068 shock and vibration standards. Offset input and output terminals with an integrated divider help prevent accidental shorts, while shielded flat blade connectors and zinc-plated M5 terminal screws make wiring quick and secure.
PRODUCT DETAILS
- 75A continuous current rating at 23C
- 150A intermittent rating for up to 3 seconds
- Bifurcated contacts reduce bounce and wear
- 100,000 cycle electrical endurance
- IP54 ingress protection, rated to 125C
- Offset terminals with divider to prevent shorts
- Meets IEC 60068 shock and vibration standards
- 75A automotive relay
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Max Continuous Current | 75 A at 23C |
| Intermittent Current | 150 A for 3 seconds |
| Operating Voltage Range | 8.8-16 V DC |
| Electrical Endurance | 100,000 cycles |
| Initial Contact Resistance | 50 mOhm at 6 Vdc |
Mechanical
| Ambient Temperature Rating | -50C to 125C |
| Ingress Protection | IP54 |
| Terminals | Dual 6.3 mm flat blade |
| Mounting | Elongated holes for M6x1.25 bolts or up to #14 screws |
