Description

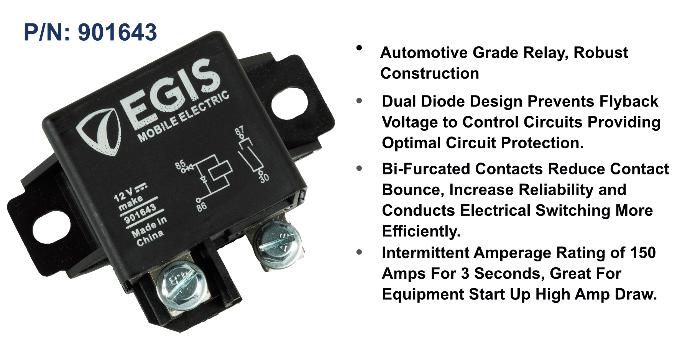

The EGIS 75A dual diode relay combines reliable high-current switching with built-in protection for sensitive electronics. A dual diode circuit suppresses flyback voltage so it does not feed back into the control signal circuitry, making this relay a strong choice where delicate electrical systems must be protected. Bifurcated contacts reduce contact bounce and wear for efficient switching and long service life.
It carries 75A continuously at 23C and handles a 150A inrush for up to three seconds for equipment start-up loads. Built for harsh conditions with a 125C temperature rating, IP54 ingress protection and reinforced mounting tabs, it meets or exceeds IEC 60068 shock and vibration standards. Offset terminals with an integrated divider guard against accidental shorts, and shielded flat blade connectors with zinc-plated M5 screws speed up installation.
PRODUCT DETAILS
- Dual diode flyback protection for sensitive circuits
- 75A continuous current rating at 23C
- 150A intermittent rating for up to 3 seconds
- Bifurcated contacts reduce bounce and wear
- 100,000 cycle electrical endurance
- IP54 ingress protection, rated to 125C
- Meets IEC 60068 shock and vibration standards
- 75A dual diode relay
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Max Continuous Current | 75 A at 23C |
| Intermittent Current | 150 A for 3 seconds |
| Operating Voltage Range | 8.8-16 V DC |
| Circuit Protection | Dual diode flyback suppression |
| Electrical Endurance | 100,000 cycles |
| Initial Contact Resistance | 50 mOhm at 6 Vdc |
Mechanical
| Ambient Temperature Rating | -50C to 125C |
| Ingress Protection | IP54 |
| Terminals | Dual 6.3 mm flat blade |
