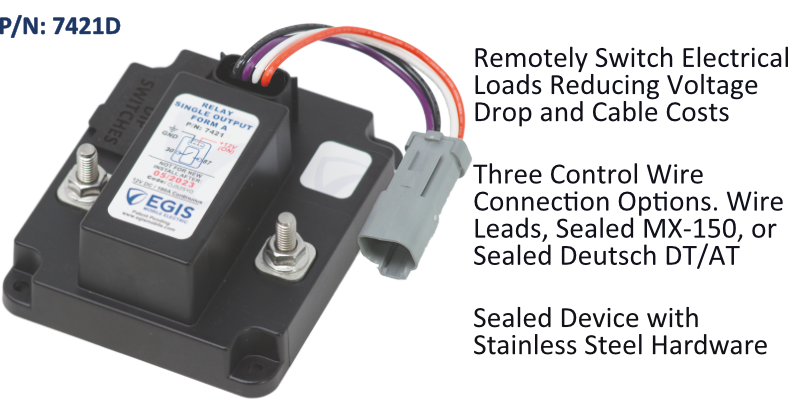

The EGIS 160 A single relay is a sealed TH3 series device that replaces a mechanical battery switch with an electrical relay wired inline between a battery and the loads it feeds. By moving the switching point closer to the battery it reduces voltage drop and the cost of long battery cables, while supporting simple battery charge management when the control line is connected to an engine ignition feed and straightforward system connect or disconnect. It extends TH Series ACR capability where extra current capacity is needed or an additional independent, isolated battery bank has to be brought online.
Installation is simple and robust. A sealed Molex MX-150 plug and harness with 2 ft control wires is supplied, and an optional output busbar lets the relay connect neatly to RT or CT series fuse blocks. The unit is fully sealed and built from high-temperature materials so it can be mounted almost anywhere, secured with stainless steel self-locking hardware, and integral diode suppression reduces voltage spikes on the control lines during switching. This single-output model carries 160 A continuously and 240 A intermittently across an 8 to 18 volt range; where two independent outputs are required, see the 7422 dual-output models.
PRODUCT DETAILS
- Replaces a mechanical battery switch with a sealed electrical relay wired inline between a battery and its loads
- 160 A continuous and 240 A intermittent single-output capacity for 12 V systems over an 8 to 18 volt range
- Supports simple battery charge management from an engine ignition line and easy system connect or disconnect
- Sealed Molex MX-150 plug and harness with 2 ft control wires included for a quick, robust install
- Bullet-proof sealed construction in high-temperature materials, mountable anywhere with stainless steel self-locking hardware
- Integral diode suppression reduces voltage spikes on the control lines during switching
- Optional output busbar connects neatly to RT or CT series fuse blocks; max cable size 2/0 AWG
- TH3 sealed relay
- Molex MX-150 wiring harness with 2 ft control wires
- Stainless steel mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 160 A |
| Intermittent Current | 240 A |
| Voltage Range | 8-18 V DC |
| On-State Current Draw | 350 mA at 12V |
Mechanical
| Max Cable Size | 2/0 AWG |
| Terminal Stud Torque | 80 in-lb / 9.1 Nm |
| Hardware | Stainless steel self-locking |
| Connector | Molex MX-150 with included harness |
