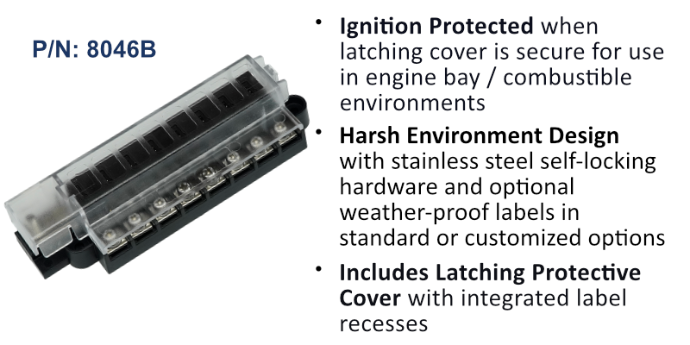

EGIS RT Series 8-Circuit Inline Fuse Block with Cover
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS RT Series 8-Circuit Inline Fuse Block is a compact distribution block with single side wire entry, making it well suited to tight installation spaces. It protects branch circuits by accepting ATO style fuses rated from 1 through 40A and supports SAE circuit protection standards for thermal and short circuit events. A maximum of 30A per circuit and 100A across the whole block is provided, with a 12/24Vdc nominal rating.
Built in the U.S.A., the block uses a harsh-environment, bullet-proof high-temperature construction with self-locking stainless steel attachment screws and a stainless steel terminal stud and nut for vibration-resistant, corrosion-resistant connections that can be mounted almost anywhere on a vehicle. It includes a latching protective cover with integrated label recesses and circuit identification labels for easy fuse and circuit identification, and accepts optional weather-proof labels in standard or customised options.
PRODUCT DETAILS
- Compact RT Series inline fuse block with 8 circuits
- Single side wire entry for tight installation spaces
- Accepts ATO style fuses from 1 to 40A
- 100A maximum per block, 30A maximum per circuit
- Latching protective cover with integrated label recesses
- Self-locking stainless steel hardware and terminal stud/nut
- Circuit identification labels included
- RT Series 8-circuit inline fuse block
- Latching protective cover with label recesses
- Circuit identification labels
- Stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current Per Circuit | 30A |
| Maximum Current (Entire Block) | 100A |
| Nominal Voltage | 12/24 VDC |
| Maximum Voltage | 60 VDC |
| Compatible Fuse Types | ATO (1 to 40A) |
Mechanical
| Number of Circuits | 8 |
| Input Terminal Size | M5-0.8 |
| Hardware Material | Stainless Steel |
