EGIS RT Series 12-Way Fuse Block with Ground & LED Indication

£74.62
Tax included.
8026
A modular 12-circuit ATO/ATC ring-terminal fuse block with an integrated ground return block and a blown-fuse LED for every circuit.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

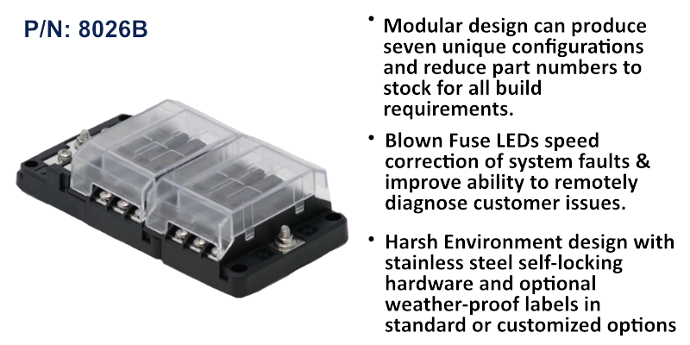

The EGIS RT Series Fuse Block is a modular 12-circuit power-distribution block that protects branch circuits by accepting ATO style fuses from 1 to 40 amps and supports SAE circuit-protection standards for thermal and short-circuit events. A blown-fuse LED on every output circuit gives clear indication of a faulty circuit and makes it far easier to diagnose system faults remotely, while the modular design allows a family of unique configurations that reduces the number of part numbers needed to stock.

Construction is built for harsh environments, with high-temperature materials and 100% non-ferrous stainless steel self-locking hardware so the block can be mounted almost anywhere. A 12-position ground return block is included and can optionally separate from the fuse block for more flexible routing, and the cover protects terminal studs and cable terminals from inadvertent shorts while providing recessed locations for circuit labels. It is made in the U.S.A.

PRODUCT DETAILS

  • 12 fuse circuits accepting ATO / ATC / ATF fuses from 1 to 40A
  • 100A maximum current for the entire block, 30A per circuit
  • Blown-fuse LED indication on every output circuit
  • Integrated 12-position ground return block, optionally separable
  • 0 to 36V DC operating range, #10 AWG maximum output wire
  • 100% non-ferrous stainless steel self-locking hardware
  • Cover with recessed circuit-label locations and spare fuse slots
  • 1 x RT Series 12-Circuit Fuse Block
  • 12-position ground return block
  • Protective cover

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Maximum Current, Entire Block100 A
Maximum Current per Circuit30 A
Voltage Range0 - 36 V DC
Compatible Fuse TypesATO / ATC / ATF

Mechanical

Number of Fuse Positions12
Maximum Output Wire Size#10 AWG
Ground Return BlockYes, 12-position, optionally separable
Blown-Fuse LED IndicationYes, per circuit

No videos available for this product.

How many circuits does this block have?
It is a 12-circuit fuse block. Each circuit accepts an ATO, ATC or ATF fuse rated from 1 to 40A, with up to 30A per circuit and 100A across the whole block.
How does the blown-fuse indication work?
Each output circuit has its own LED that lights when its fuse blows, giving clear local indication and making remote troubleshooting easier.
Does it include a ground connection?
Yes. A 12-position ground return block is included and can optionally separate from the fuse block for more flexible harness routing.
What fuse types are compatible?
It accepts standard ATO, ATC and ATF blade fuses and supports SAE circuit-protection standards.
