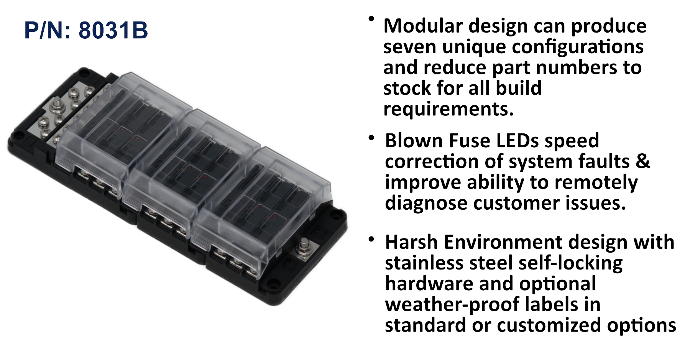

EGIS RT Series 18-Way Fuse Block with Ground & LED Indication
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS RT Series 18-Way Fuse Block with Ground combines an eighteen-circuit ring-terminal fuse block with an included twelve-position ground return block, providing a complete power distribution and clean ground return solution in one unit. It protects branch circuits by accepting ATO, ATC and ATF style fuses rated from 1 through 40A, and a blown-fuse LED on each output circuit gives a clear indication of faulty circuits to speed troubleshooting. The modular design works with the 8028 and 8030 blocks to produce seven unique configurations and reduce the number of part numbers held in stock.
Built in the U.S.A., the block is designed for harsh environments with bullet-proof high-temperature construction and 100 percent non-ferrous stainless steel self-locking hardware that allows mounting almost anywhere on a vehicle. The ground block section can optionally separate from the fuse block section, affording increased deployment options for challenging installations and effective wire harness routing. It supports SAE circuit protection standards, includes spare fuse locations, and accepts optional weather-proof labels.
PRODUCT DETAILS
- Modular RT Series fuse block with 18 ring-terminal output circuits
- Includes a 12-position ground return block that optionally separates
- Blown-fuse LED indication on every circuit for fast fault diagnosis
- Accepts ATO / ATC / ATF fuses from 1 to 40A
- 100A maximum per block, 30A maximum per circuit
- Stainless steel self-locking, 100 percent non-ferrous hardware
- Spare fuse locations and label recesses included
- RT Series 18-circuit fuse block with blown-fuse LED indication
- 12-position ground return block (optionally separates)
- Protective cover with label recesses
- Circuit identification labels
- Stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Max Current (Entire Block) | 100A |
| Max Current Per Circuit | 30A |
| Voltage Range | 0-36 VDC |
| Compatible Fuse Types | ATO / ATC / ATF |
| Fuse Amperage Range | 1 to 40A |
Mechanical
| Number of Fuse Positions | 18 |
| Ground Block | Included, 12-position, optionally separates |
| Max Output Wire Size | #10 AWG |
| Hardware | Stainless steel self-locking |
Features
| Fuse Diagnostics | Blown-fuse LED per circuit |
