EGIS RT Series 6-Way Fuse Block with LED Indication

£48.98
Tax included.
8028
RT Series modular 6-position ring-terminal fuse block with blown-fuse LED indication on every circuit. Accepts ATO/ATC/ATF fuses from 1 to 40A for marine and vehicle branch circuit protection.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

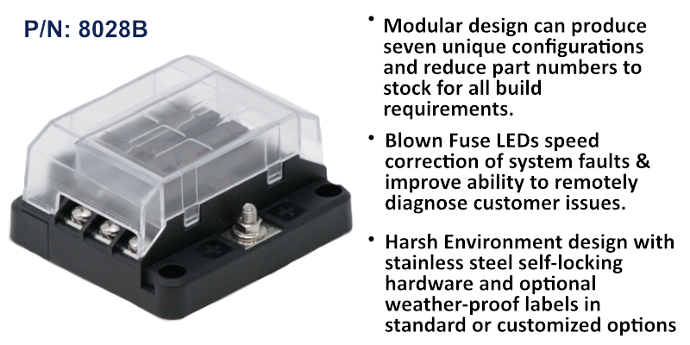

The EGIS RT Series 6-Way Fuse Block is a modular ring-terminal distribution block that protects branch circuits by accepting ATO, ATC and ATF style fuses rated from 1 through 40A. A blown-fuse LED on each of the six output circuits gives a clear indication of faulty circuits, speeding fault correction and making it easier to diagnose customer issues remotely. The modular design works with the 8028 and 8030 blocks to produce seven unique configurations, helping to reduce the number of part numbers held in stock for varied build requirements.

Built in the U.S.A., the block is designed for harsh environments with bullet-proof high-temperature construction and 100 percent non-ferrous stainless steel self-locking hardware that allows mounting almost anywhere on a vehicle. It supports SAE circuit protection standards for thermal and short circuit events, provides two spare fuse locations per six circuits, and accepts optional weather-proof labels in standard or customised options. A cover with label recesses protects the terminal studs and cable terminals from inadvertent shorts.

PRODUCT DETAILS

  • Modular RT Series fuse block with 6 ring-terminal output circuits
  • Blown-fuse LED indication on every circuit for fast fault diagnosis
  • Accepts ATO / ATC / ATF fuses from 1 to 40A
  • 100A maximum per block, 30A maximum per circuit
  • Combines with 8028 and 8030 to create seven configurations
  • Stainless steel self-locking, 100 percent non-ferrous hardware
  • Two spare fuse locations and label recesses included
  • RT Series 6-circuit fuse block with blown-fuse LED indication
  • Protective cover with label recesses
  • Circuit identification labels
  • Stainless steel self-locking hardware

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Max Current (Entire Block)100A
Max Current Per Circuit30A
Voltage Range0-36 VDC
Compatible Fuse TypesATO / ATC / ATF
Fuse Amperage Range1 to 40A

Mechanical

Number of Fuse Positions6
Max Output Wire Size#10 AWG
HardwareStainless steel self-locking

Features

Fuse DiagnosticsBlown-fuse LED per circuit

No videos available for this product.

What does the blown-fuse LED indication do?
A blown-fuse LED is fitted to each output circuit. When a fuse fails, the LED lights to clearly identify the faulty circuit, which speeds troubleshooting and makes it easier to diagnose issues remotely.
What fuses does this block accept?
It accepts ATO, ATC and ATF style blade fuses rated from 1 through 40A per circuit, with a maximum of 30A per circuit and 100A across the whole block.
Does this block provide a ground return?
No. The 6-way block distributes fused positive circuits only. If you need an integrated ground return, see the RT Series blocks supplied with a ground block.
How does the modular design help?
The 8028 and 8030 blocks combine to produce seven unique configurations, which reduces the number of separate part numbers you need to stock to cover varied build requirements.
