Description

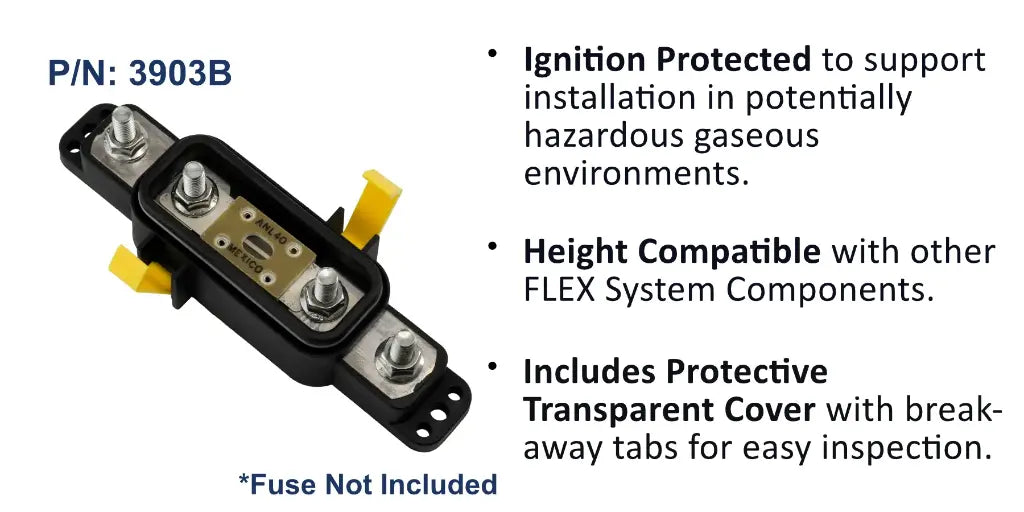

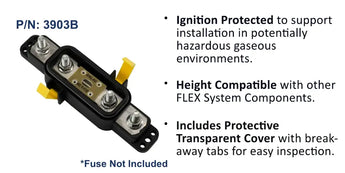

The EGIS Sealed ANL Fuse Block provides high-current over-current protection for a single circuit using ANL fuses from 35 to 750 amps, with separate stud connections sized for cables up to 4/0 (approximately 105mm2). Routing heavy cables and terminals onto dedicated input and output studs rather than the fuse tab improves connection integrity, while the tin-plated copper busbar minimises voltage drop. Sealed to IP66, IP67 and IP6K9K and ignition protected, it is engineered for harsh marine and mobile environments, including LPG and gas-boat applications.
A transparent cover with break-away tabs allows easy cable and terminal access, and stainless steel self-locking hardware keeps connections secure in high-vibration conditions. The glass-filled nylon housing offers long service life, and the block is compatible with the EGIS FLEX system for height-matched busbar interconnection with other components. Designed and made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- Single-circuit ANL fuse block rated 35 to 750A
- Accepts cables up to 4/0 (about 105mm2)
- Sealed to IP66, IP67 and IP6K9K and ignition protected
- Separate input and output studs for heavy-gauge cable mounting
- Tin-plated copper busbar for minimal voltage drop
- Stainless steel self-locking hardware and transparent cover
- FLEX system compatible via height-matched busbars
- Sealed ANL fuse block
- Transparent protective cover with break-away tabs
- Stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Amp Rating | 35-750A |
| Maximum Voltage | 80V DC |
| Fuse Type | ANL |
Mechanical
| Maximum Cable Size | 4/0 (about 105mm2) |
| Circuits | 1 |
| Busbar Material | Tin-plated copper |
| Mounting Holes | 4x #10 (M5) and 2x 1/4" (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Ingress Protection | IP66, IP67, IP6K9K |
| Ignition Protected | Yes |
