EGIS Sealed Break-Out Box, 1x6 + 2x3 Circuits + M6 I/O (Bulk Pack)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

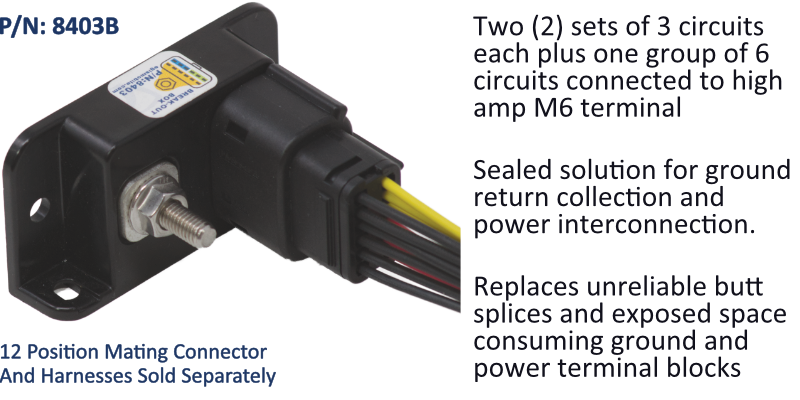

The EGIS 8403B is a sealed CT Series break-out box that distributes power or returns grounds through one bank of six and two banks of three circuits, fed from a high-amp M6 input/output terminal. It improves the robustness of wire-to-wire and ground-return connections that would otherwise be exposed to corrosion or shorting on open busbars and terminal blocks, and lets individual circuits be pulled and tested for inspection or diagnosis.
The sealed enclosure (IP67 / IP6K9K) uses a plug-in connector, tin-plated copper-alloy conductors and stainless steel hardware, with high-temperature materials suitable for mounting almost anywhere on a vehicle or vessel. It is ignition protected, carries up to 200A in total with 22A per terminal, and offers two mounting orientations for a compact footprint.
PRODUCT DETAILS
- One bank of six plus two banks of three circuit layout with M6 input/output terminal
- Sealed to IP67 / IP6K9K against water and corrosion
- 200A total capacity, 22A per terminal
- Ignition protected for enclosed petrol installations
- Tin-plated copper alloy with stainless steel hardware
- Two mounting orientations for a compact footprint
- Sealed plug-in connector simplifies installation
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Max Total Current | 200 A |
| Max Terminal Current | 22 A |
| Voltage Range | 8-36 V DC |
| Cable Size for Max Current | 2/0 AWG |
| Max Cable Size | 4/0 AWG |
Mechanical
| Operating Temperature | -40 to 125 C |
| Ingress Protection | IP67 / IP6K9K |
| Ignition Protected | Yes |
