Description

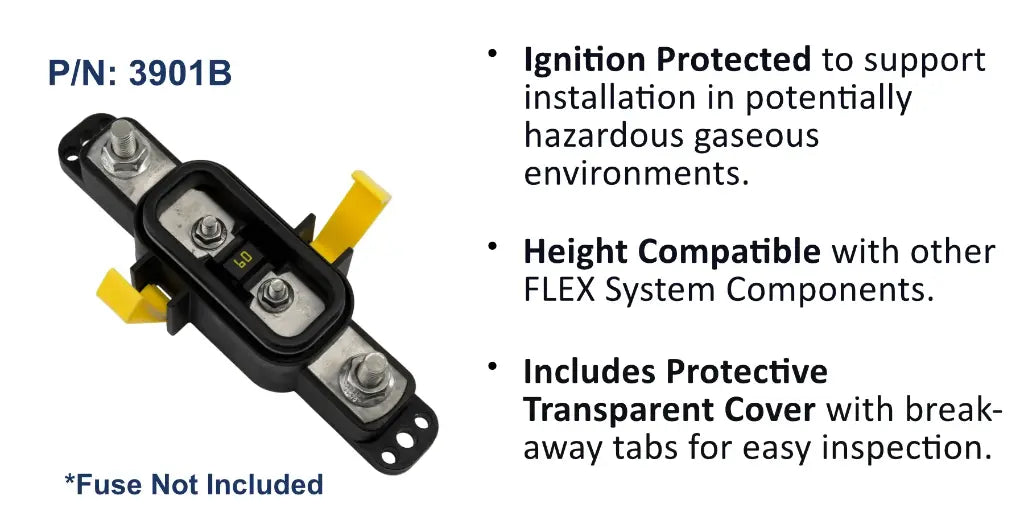

The EGIS Sealed MIDI Fuse Block provides robust over-current protection for a single heavy-gauge circuit using AMI/MIDI fuses from 30 to 200 amps. Separate stud connections allow large cables and their terminals to land cleanly on dedicated input and output studs rather than directly on the fuse tab, while the tin-plated copper busbar keeps voltage drop to a minimum. Sealed to IP66, IP67 and IP6K9K and ignition protected, it is suited to demanding marine and mobile installations, including LPG and gas-boat environments.
A transparent cover with break-away tabs gives easy access for cable and terminal routing, and stainless steel self-locking hardware maintains reliable connections over the long term. The glass-filled nylon housing withstands harsh conditions, and the block is compatible with the EGIS FLEX system for height-matched busbar interconnection with other components. Designed and made in the U.S.A. and backed by a four year warranty.
PRODUCT DETAILS
- Single-circuit AMI/MIDI fuse block rated 30 to 200A
- Sealed to IP66, IP67 and IP6K9K for harsh environments
- Ignition protected for LPG and gas-boat installations
- Separate input and output studs for heavy-gauge cable mounting
- Tin-plated copper busbar for minimal voltage drop
- Stainless steel self-locking hardware and transparent cover
- FLEX system compatible via height-matched busbars
- Sealed MIDI/AMI fuse block
- Transparent protective cover with break-away tabs
- Stainless steel self-locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Amp Rating | 30-200A |
| Maximum Voltage | 80V DC |
| Fuse Type | AMI / MIDI |
Mechanical
| Circuits | 1 |
| Busbar Material | Tin-plated copper |
| Mounting Holes | 4x #10 (M5) and 2x 1/4" (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Ingress Protection | IP66, IP67, IP6K9K |
| Ignition Protected | Yes |
