EGIS Short Stop 5A Circuit Breaker
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

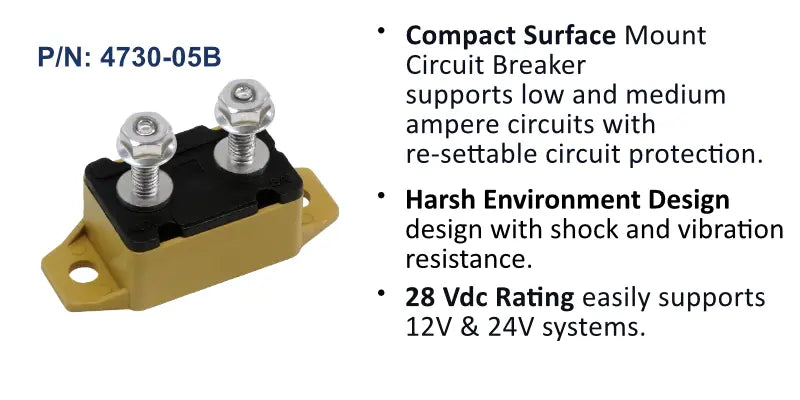

The EGIS Short Stop is a robust surface-mount thermal circuit breaker that protects low and medium ampere circuits against short circuits and over-current loads, preventing wire insulation from overheating. Rated at 5A and 28 VDC, it suits both 12V and 24V systems and offers re-settable protection that is more convenient than replacing a fuse. The Type III manual reset allows power to be restored easily once a fault has been cleared.
Built for harsh marine environments, the breaker carries an IP66 rating against dust and water intrusion and is ignition protected for safe installation in enclosed compartments where explosive gases may be present. Anti-rotation, corrosion-resistant locking hardware and a reinforced mounting tab ensure a secure, long-lasting installation. An optional protective cover guards against inadvertent shorts between the breaker studs and adjacent positive or ground points.
PRODUCT DETAILS
- Type III manual push-to-reset operation
- Rated 5A at 28 VDC for 12V and 24V systems
- IP66 sealed against dust and water intrusion
- Ignition protected for enclosed compartments
- Anti-rotation, corrosion-resistant locking hardware
- Reinforced mounting tab for secure surface mount
- Optional protective cover available
- 1 x EGIS Short Stop 5A surface-mount circuit breaker
- Mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 5A |
| Voltage Rating | 28 VDC max |
| Interrupt Capacity | 2,500A at 12 VDC, 1,500A at 24 VDC |
Mechanical
| Mounting | Surface mount |
| Ingress Protection | IP66 |
| Reset Type | Type III manual push-to-reset |
