EGIS Dual-Output Time Delay Relay 2x80A 12V (Bulk Pack)

£230.24
Tax included.
7616B
TH-Series dual-output time delay relay for 12V systems, with two independently timed 80A outputs (160A total) in one sealed unit. Each output can act as a remotely controlled switch or turn off automatically after a programmed delay, with an ultra-low 1.5mA off-state draw. Supplied in bulk packaging.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

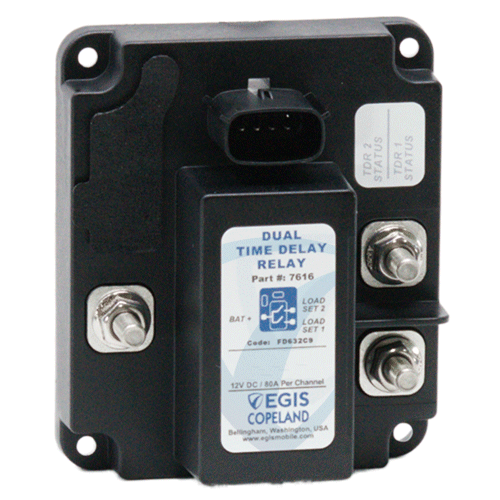

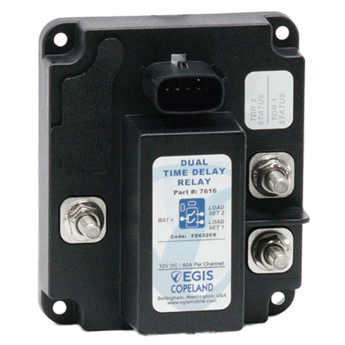

The EGIS 7616 is a TH-Series dual-output time delay relay (TDR) for 12V electrical systems, providing two independently timed outputs rated at 80A continuous each, for a 160A total. Each output can be used as a remotely controlled switch or operate autonomously, turning off after a programmed delay following a trigger event or optionally when input voltage falls too low. This makes it ideal for managing keep-alive, end-of-shift and auxiliary circuits from a single compact device.

An ultra-low off-state current draw of 1.5mA equates to less than 1 amp-hour of battery dissipation per month of stand-by, protecting batteries during downtime. Time delays are set from 5 seconds to 4 hours using top-side dip switches that also enable optional features such as under-voltage and over-voltage load protection, while on-board and remote LED diagnostics indicate output status and pending off events. The sealed enclosure is waterproof to IP66/IP6K9K, ignition protected to ISO 8846 and built with stainless-steel self-locking hardware and 100% non-ferrous materials. A Molex MX-150 integral connector with a two-foot ground and ignition harness is included for rapid, correct field wiring.

PRODUCT DETAILS

  • Two independently timed 80A outputs in one unit (160A total continuous)
  • Each output works as a remote switch or turns off automatically after a set delay
  • Programmable time delay from 5 seconds to 4 hours via top-side dip switches
  • Optional under-voltage and over-voltage load protection
  • Ultra-low 1.5mA off-state current draw (under 1Ah per month stand-by)
  • On-board and remote LED diagnostics for output and pending off-event status
  • Sealed construction waterproof to IP66/IP6K9K and ignition protected to ISO 8846
  • Molex MX-150 integral connector with two-foot ground and ignition harness included
  • 1 x EGIS 7616 dual-output time delay relay (2 x 80A), bulk packaged
  • Molex MX-150 mating connector with two feet of ground and ignition wire

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current80 A per output (160 A total)
Intermittent Current120 A per output (5 minutes)
Voltage Range8 - 18 V DC (12 V nominal)
Off-State Current Draw1.5 mA
Time Delay Range5 seconds to 4 hours

Mechanical

Operating Temperature-40 to 85 deg C
ConnectorMolex MX-150 with ground and ignition harness
Ingress ProtectionIP66 / IP6K9K, ignition protected to ISO 8846

No videos available for this product.

How many outputs does the 7616 have and how are they rated?
The 7616 provides two independently timed outputs, each rated at 80A continuous, for a combined 160A total. Each output can be timed separately, so you can manage two circuits with different delays from a single unit.
What time delay range can be set?
Each output can be programmed from 5 seconds up to 4 hours using the top-side dip switches. The same dip switches also enable optional features such as under-voltage and over-voltage load protection.
Can the outputs turn off automatically?
Yes. Each output can operate as a remotely controlled switch or autonomously, turning off after the programmed time delay following a trigger event, or optionally if the input voltage drops too low.
What does the bulk pack include?
The 7616B is the bulk-packaged version of the 7616 dual-output time delay relay and is functionally identical to the retail unit. It ships in plain bulk packaging with the Molex MX-150 mating connector and two-foot ground and ignition harness.
