EGIS
EGIS 65A Terminal Block, 2 Circuit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

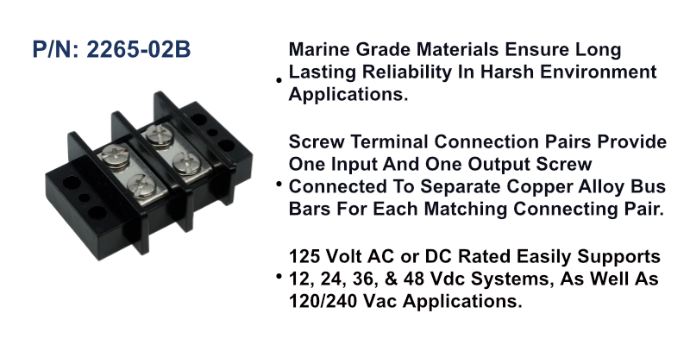

The EGIS 65A terminal block provides 2 matching screw connection pairs, each with one input and one output terminal joined by a separate copper-alloy busbar. It gives a tidy, reliable way to land and distribute circuits, eliminating unreliable butt-splice joins and allowing individual circuits to be pulled and tested for inspection or diagnosis.
Built from marine-grade materials, it uses tin-plated copper-alloy conductors, stainless steel hardware and high-temperature insulation for long service life. Anti-rotation ribs reduce the chance of terminal rotation under vibration, while high insulation walls protect ring-terminal splices from shorting to adjacent circuits or ground. Rated 250V AC or DC, it suits 12, 24, 36 and 48V DC systems and is backed by a 4-year warranty.
PRODUCT DETAILS
- 2 input/output screw connection pairs
- 65A continuous current per circuit
- Marine-grade tin-plated copper-alloy conductors
- Stainless steel hardware with anti-rotation ribs
- High insulation walls protect against shorting
- Rated 250V AC/DC, CE marked and RoHS compliant
- 4-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 65 A |
| Max Voltage | 250 V AC/DC |
| Dielectric Strength | 2000 V AC |
Mechanical
| Hardware Material | Stainless steel |
| CE Marked | Yes |
| RoHS Compliant | Yes |
