EGIS
EGIS XD Flex L Lithium ACR Triple 500A 12/24V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

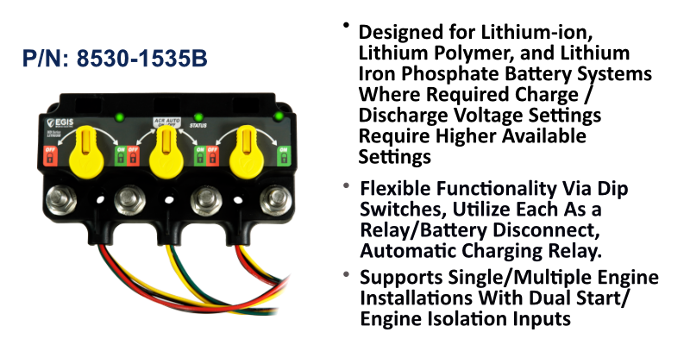

The EGIS 8530-1535 is a triple-circuit XD Series Flex L module configured as a relay, a lithium-tuned automatic charging relay (ACR) and a relay, replacing three individual high-amp relays and their external link cables with one compact unit. Built on the XD bi-stable solenoid platform, it delivers 500A continuous current and up to 1500A cranking over an 8-36V DC range, with thresholds suited to modern lithium battery chemistries. The central ACR shares charge between banks while the outer relays handle load switching, replicating common multi-battery switching and charge-management layouts, and it can also consolidate multiple ACRs for three and four battery systems.
Each of the three circuits has its own front-facing 3-position manual override knob that forces the relay open or closed and locks it in either state, with a clear front LED and a remote LED that mirrors it. The sealed enclosure is rated to IP67/IP6K9K with an integrated Gore-Tex vent for long life in harsh environments, and stainless-steel studs with self-locking flanged nuts accept 1/4-20 or M6 hardware. Functions are configured via dip switches under the included protective cover, off-state draw is just 1.3mA, and the unit terminates in flying tinned wire leads. It can be expanded with optional 8790 link and 8791 crossover busbars.
PRODUCT DETAILS
- Triple-circuit module arranged as relay, lithium-tuned ACR and relay
- 500A total continuous current and 1500A maximum cranking current
- Wide 8-36V DC operating range for 12V and 24V systems
- Ultra-low 1.3mA off-state draw via advanced bi-stable solenoid design
- Individual 3-position manual override knobs lock each relay open or closed
- Front and remote LED status indication, programmable via dip switches
- Sealed to IP67/IP6K9K with integrated Gore-Tex vent and stainless studs (1/4-20 / M6)
- Flying tinned wire leads; expandable with 8790/8791 link busbars
- 1 x EGIS 8530-1535 triple XD Flex L module (relay/ACR/relay) with flying tinned wire leads
- 3 x 3-position manual override knobs (fitted)
- Protective terminal cover
- 40-circuit weatherproof label sheet
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Max Cranking Current | 1500 A |
| Voltage Range | 8 - 36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Tinned wire leads |
| Ingress Protection | IP67 / IP6K9K |
