EGIS XD Flex Relay/ACR/LVD Triple 500A 12/24V (DTM)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

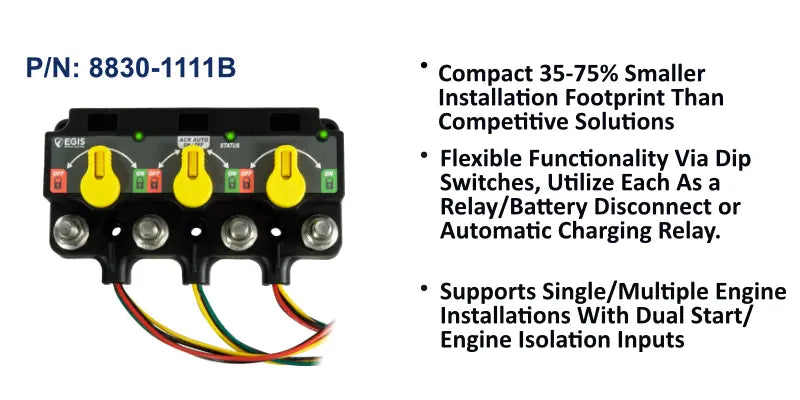

The EGIS XD Series Triple Relay/ACR/LVD brings three distinct power-management functions into one compact 500A module. A switched relay handles load switching, a central automatic charging relay (ACR) shares charge current between battery banks, and a low-voltage disconnect (LVD) sheds loads to protect a battery from over-discharge. Each circuit is rated 500A continuous and 1500A maximum cranking across an 8 to 36 V DC range, covering standard 12V and 24V marine electrical systems and replacing several separate devices.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Each circuit is dip-switch programmable under the included protective cover and carries a three-position manual override knob for clear, lockable open or closed control. Off-state draw is just 1.3 mA, front and remote LEDs report status, and the Deutsch DTM connectors are pin-for-pin compatible with legacy ML Series bi-stable relays. The system expands with 8790 link and 8791 cross-link busbars.
PRODUCT DETAILS
- Three functions in one module: switched relay, automatic charging relay and low-voltage disconnect
- Low-voltage disconnect (LVD) sheds loads to protect batteries from over-discharge
- Three-position manual override knob per circuit with lockable open/closed positions
- 500A continuous and 1500A maximum cranking per circuit
- Sealed to IP67 / IP6K9K with integrated Gortex vent and 1.3 mA off-state draw
- Deutsch DTM connectors, pin-for-pin compatible with ML Series bi-stable relays
- Expandable with 8790 link and 8791 cross-link busbars
- 1 x EGIS XD Series triple-circuit module (Relay/ACR/LVD)
- Three front-facing manual override knobs (fitted)
- Protective terminal cover with label recesses
- Stainless steel terminal hardware (self-locking flanged nuts)
- Deutsch DTM mating connectors
- Dip-switch configuration guide
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A per circuit |
| Max Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DTM (3x) |
| Circuit Configuration | Relay / ACR / LVD (3 circuits) |
| Ingress Protection | IP67 / IP6K9K |
