EGIS XD Flex 2 Switch/ACR/Switch Triple 500A 12/24V

£297.82
Tax included.
8730-1939
Triple-circuit XD Series Flex 2 module with two mechanical-equivalent battery switches flanking a central automatic charging relay, in one compact device for 12V and 24V systems. Each circuit is rated 500A continuous and 1500A cranking, with independent 3-position manual override knobs, a 1.3mA off-state draw and sealed IP67 / IP6K9K construction. Supplied with tinned wire leads.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

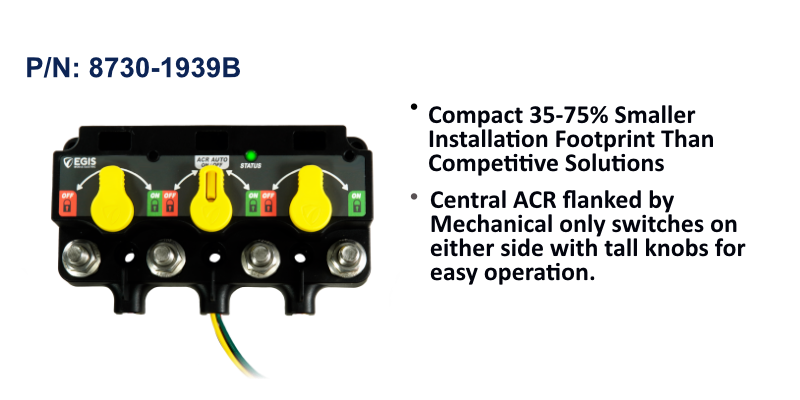

The EGIS XD Flex 2 Triple combines three high-current circuits, two outer mechanical-equivalent battery switches and a central automatic charging relay, in one compact bi-stable module for 12V and 24V DC systems. The outer circuits provide remote battery disconnect and load switching while the central ACR shares charge current between banks, replacing three individual high-amp relays and the link cabling between them. Each circuit carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC range, and all three functions are programmable via dip switches.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoids draw just 1.3mA in the off state, and each circuit has its own 3-position manual override knob to force it open or closed and lock it there. Front-facing LEDs report status with remote LED replica outputs, the dip switches sit under an included protective cover, and the module can be expanded with optional link and cross-link busbars. This version ships with tinned wire leads.

PRODUCT DETAILS

  • Three circuits: two mechanical-equivalent battery switches plus a central ACR
  • Replaces three separate high-amp relays and their interconnect cabling
  • Each circuit rated 500A continuous and 1500A cranking for 12V and 24V systems
  • Independent 3-position manual override knob per circuit
  • Ultra-low 1.3mA off-state current draw
  • Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent
  • Expandable with optional link and cross-link busbars
  • EGIS XD Series Flex 2 triple-circuit module (switch / ACR / switch) with tinned wire leads
  • Three 3-position manual override knobs
  • Protective terminal cover
  • Stainless steel studs and self-locking flanged nuts

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorTinned wire leads
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What do the three circuits do?
The two outer circuits are mechanical-equivalent battery switches for remote disconnect and load switching, and the central circuit is an automatic charging relay that shares charge current between banks. Together they replace three individual high-amp relays.
What current and voltage is each circuit rated for?
Each circuit operates across 8 to 36V DC, suiting both 12V and 24V systems, and is rated for 500A continuous current with up to 1500A during engine cranking.
Does each circuit have its own manual override?
Yes. Each of the three circuits has an independent 3-position manual override knob that can force that circuit open or closed and lock it in either state.
Can it be expanded for larger battery systems?
Yes. It connects to other XD relays using the optional 8790 link and 8791 cross-link busbars to support larger multi-battery systems without separate link cables.
