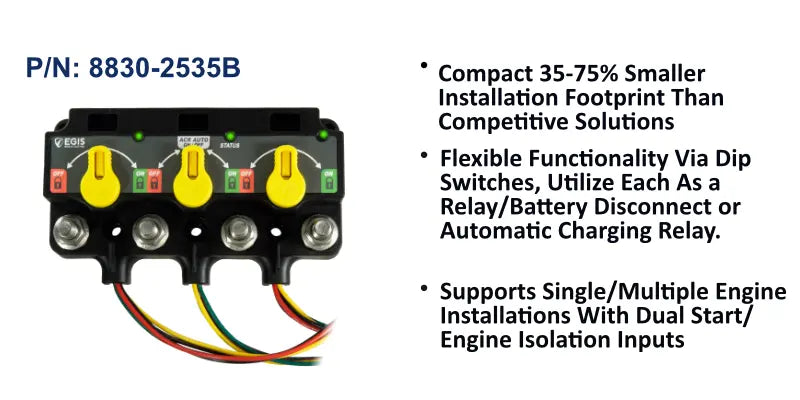

EGIS XD Flex 2 Relay/ACR/Relay Triple 500A 12/24V (12-Pos DT)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS XD Series Flex 2 Triple (12-position DT) packs three independent 500A relay circuits into one compact module, replacing three individual high-current relays and their interconnecting cables. Configured Relay/ACR/Relay, the two outer relays switch loads while a central automatic charging relay shares charge current between banks, making it well suited to three and four battery systems. Each circuit is rated 500A continuous and 1500A maximum cranking across an 8 to 36 V DC range, covering standard 12V and 24V marine electrical systems. Control wiring is consolidated into a single 12-position Deutsch DT connector.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Each circuit is dip-switch programmable under the included protective cover and carries a three-position manual override knob for clear, lockable open or closed control. Off-state draw is just 1.3 mA and front and remote LEDs report status. The system expands further using 8790 link and 8791 cross-link busbars.
PRODUCT DETAILS
- Three independent 500A circuits in one module (Relay / ACR / Relay)
- Single 12-position Deutsch DT connector consolidates all control wiring
- Central automatic charging relay shares charge between banks; outer relays switch loads
- Three-position manual override knob per circuit with lockable open/closed positions
- 500A continuous and 1500A maximum cranking per circuit
- Sealed to IP67 / IP6K9K with integrated Gortex vent and 1.3 mA off-state draw
- Expandable with 8790 link and 8791 cross-link busbars
- 1 x EGIS XD Series Flex 2 triple-circuit relay module (Relay/ACR/Relay)
- Three front-facing manual override knobs (fitted)
- Protective terminal cover with label recesses
- Stainless steel terminal hardware (self-locking flanged nuts)
- 12-position Deutsch DT mating connector
- Dip-switch configuration guide
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A per circuit |
| Max Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DT (12-position) |
| Circuit Configuration | Relay / ACR / Relay (3 circuits) |
| Ingress Protection | IP67 / IP6K9K |
