EGIS

EGIS Universal Voltage Sensing Relay 160A 12V

£187.86
Tax included.
7618
TH3-Series universal voltage sensing relay rated at 160A for 12V systems. Combines battery banks on charge voltage and isolates them when charging stops, configurable as a VSR, battery management relay, time delay relay or simple relay, with an industry-low 1.3mA off-state draw and sealed, ignition-protected construction.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

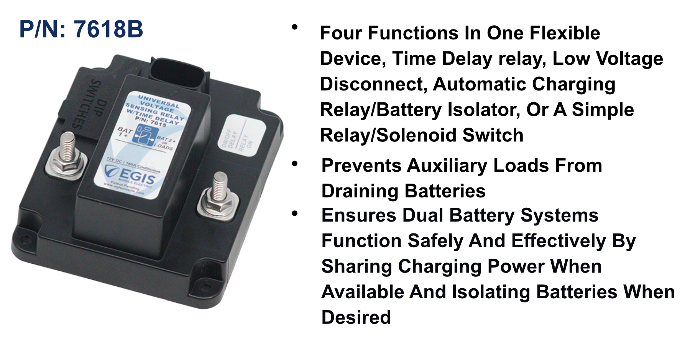

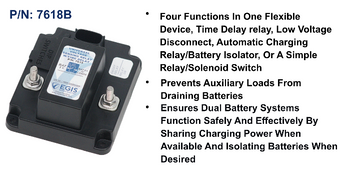

The EGIS 7618 is a TH3-Series universal voltage sensing relay (VSR) rated at 160A continuous for 12V electrical systems. It automatically combines a start and auxiliary battery when alternator or charge voltage is detected and isolates them when charging stops, ensuring starting and communications capability are protected. A single device can be configured as a voltage sensing relay, a battery management relay, a low voltage disconnect or a simple relay, triggered by an external ignition signal, alternator voltage sense, or both, with adjustable voltage and low-voltage protection thresholds.

An industry-low off-state current draw of just 1.3mA eliminates vehicle downtime caused by dead batteries during extended stand-by. An optional off time delay of up to 16 hours, a start-isolation or kill-switch control input, and integrated thermal-overload protection add flexibility and safety, while on-board and remote LED diagnostics report output status and pending off events. The sealed enclosure uses high-temperature materials and stainless-steel self-locking hardware so it can be mounted almost anywhere, and a Molex MX-150 integral connector with a two-foot ground and ignition harness is included for rapid, correct field wiring.

PRODUCT DETAILS

  • 160A continuous current rating for 12V systems
  • Automatically combines and isolates batteries on charge voltage
  • Configurable as a VSR, battery management relay, low voltage disconnect or simple relay
  • Industry-low 1.3mA off-state current draw
  • Adjustable voltage trigger and low-voltage protection thresholds via dip switches
  • Optional off time delay up to 16 hours with start-isolation/kill-switch input
  • Integrated thermal-overload protection with on-board and remote LED diagnostics
  • Sealed construction with stainless-steel hardware and Molex MX-150 harness included
  • 1 x EGIS 7618 universal voltage sensing relay
  • Molex MX-150 mating connector with two feet of ground and ignition wire

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current160 A
Intermittent Current240 A
Voltage Range8 - 18 V DC
Off-State Current Draw1.3 mA
Low Voltage Protection11.5 - 12.1 V DC
Time Delay Range0 seconds to 16 hours

Mechanical

ConnectorMolex MX-150 with ground and ignition harness
Ingress ProtectionIP66 / IP6K9K, ignition protected to ISO 8846

No videos available for this product.

What operating modes does the 7618 support?
The 7618 is a universal device that can be configured as a voltage sensing relay (VSR), a battery management relay, a low voltage disconnect, or a simple relay. The mode and trigger options are selected using the top-side dip switches.
How does the relay decide when to combine batteries?
It senses charge voltage and can be triggered by an external ignition signal, by alternator voltage sense, or by both. The voltage trigger levels and low-voltage protection thresholds are adjustable via dip switches, and ignition input priority can be set.
What is the off-state current draw?
The 7618 has an industry-low off-state current draw of just 1.3mA, which prevents batteries from being drained during extended stand-by and helps eliminate dead-battery downtime.
Can I add a kill switch or emergency off?
Yes. The 7618 has a start-isolation and kill-switch control input that lets service technicians or an emergency-off circuit force the relay off, which also protects sensitive add-on equipment from engine cranking voltage fluctuations.
