EGIS XD Flex L Lithium Single Relay / ACR 500A with Knob
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The XD Flex L is a single-circuit automatic charging relay built specifically for lithium battery systems, where the higher charge and discharge voltage set-points demanded by lithium chemistries fall outside the range of a standard voltage-sensitive relay. It shares the XD platform's bi-stable solenoid design, switching 500 A continuously and up to 1,500 A cranking while drawing only 1.3 mA in the off state, so it isolates and combines battery banks automatically without the parasitic load of legacy combining relays. A front-facing LED reports relay status at a glance and is replicated on the optional remote LED.

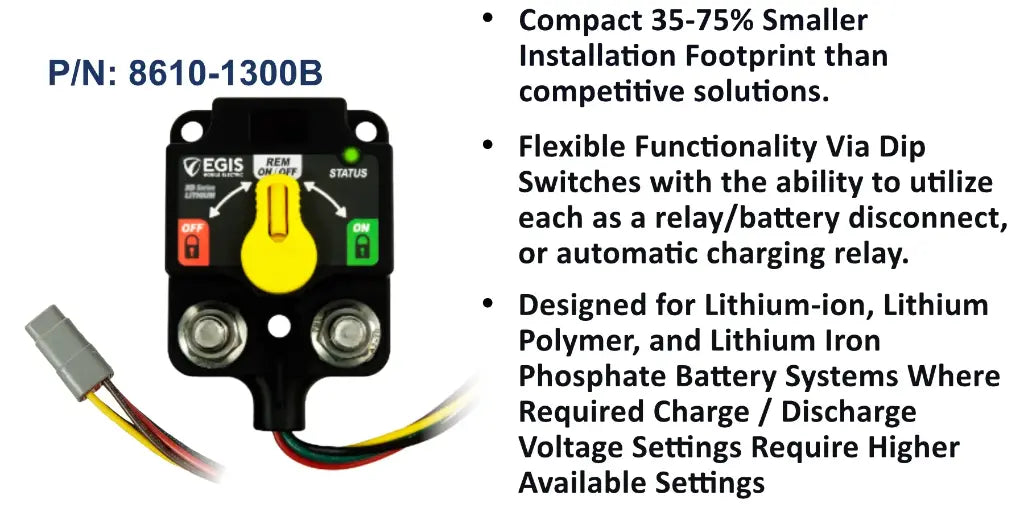

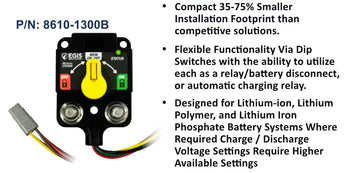

Operation is reassuringly hands-on thanks to the three-position manual override knob, which lets you force the relay open or closed and lock it in either condition, with the knob position making the current state unambiguous. The unit is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gore-Tex vent and stainless steel studs, so it can be mounted almost anywhere on board. Connection is through a sealed 6-position DTM/ATM plug that is pin-for-pin compatible with legacy ML Series bi-stable relays, and the device can be expanded with 8790 and 8791 link bars to build two and three battery systems.
PRODUCT DETAILS
- Lithium-ready automatic charging relay (VSR) with elevated charge and discharge voltage settings
- 500 A continuous and 1,500 A cranking switching from a compact bi-stable solenoid design
- Three-position manual override knob forces each relay open or closed and locks the state
- Front-facing LED status display with optional remote LED replication
- Sealed to IP67 and IP6K9K with integrated Gore-Tex vent and stainless steel hardware
- 6-position DTM/ATM connector pin-for-pin compatible with legacy ML Series bi-stable relays
- Expandable with 8790 and 8791 link bars and configurable via DIP switches under the cover
- XD Flex L single-circuit lithium relay / ACR unit with three-position manual override knob
- Protective terminal cover with circuit label recesses
- 40-circuit waterproof label sheet
- 18-8 stainless steel studs and self-locking flanged nuts
- 6-position DTM/ATM connector interface (mating harness ordered separately)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Max Cranking Current | 1,500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A at 12 Vdc / 3A at 24 Vdc |
| Relay Function | Automatic charging relay / VSR (lithium capable) |
Mechanical
| Circuit Configuration | Single circuit |
| Mechanical Switching Life | 1,000,000 cycles |
| Ingress Protection | IP67 / IP6K9K |
| Manual Override | Three-position knob (lockable) |
| Connector | 6-position DTM/ATM sealed plug |
| Mounting Hardware | 1/4-20 / M6 holes; 18-8 stainless steel studs, self-locking flanged nuts |
