EGIS XD Flex L Lithium ACR Single 500A 12/24V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

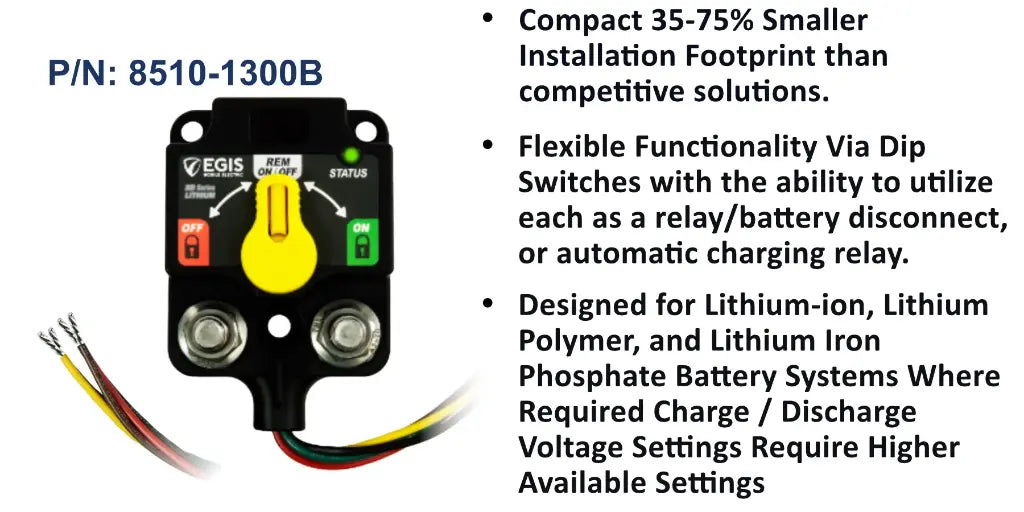

The EGIS 8510-1300 is a single-circuit XD Series Flex L relay that can be programmed as a voltage sensing relay or automatic charging relay, with thresholds tuned for lithium battery chemistries that require higher charge and discharge voltage settings. Built on the XD bi-stable solenoid platform, it delivers 500A continuous current and up to 1500A cranking in a footprint far smaller than conventional solutions, combining and isolating battery banks automatically while drawing only 1.3mA in its off state, around 90-95% less than comparable multi-device systems.
A front-facing 3-position manual override knob lets the relay be forced open or closed and locked in either state, with a clearly visible front LED and a remote LED that mirrors it for status at a glance. The sealed enclosure is rated to IP67/IP6K9K with an integrated Gore-Tex vent that regulates internal pressure for long life in harsh environments, while stainless-steel studs and self-locking flanged nuts accept 1/4-20 or M6 hardware. Functions are configured via dip switches under the included protective cover, and the unit terminates in flying tinned wire leads. A weatherproof 40-circuit label sheet and the protective terminal cover are supplied.
PRODUCT DETAILS
- Single-circuit Flex L VSR/ACR tuned for lithium battery voltage thresholds
- 500A total continuous current and 1500A maximum cranking current
- Wide 8-36V DC operating range for 12V and 24V systems
- Ultra-low 1.3mA off-state draw via advanced bi-stable solenoid design
- 3-position manual override knob locks the relay open or closed
- Front and remote LED status indication, programmable via dip switches
- Sealed to IP67/IP6K9K with integrated Gore-Tex vent and stainless studs (1/4-20 / M6)
- Flying tinned wire leads with protective cover and 40-circuit label sheet included
- 1 x EGIS 8510-1300 single XD Flex L relay with flying tinned wire leads
- 3-position manual override knob (fitted)
- Protective terminal cover
- 40-circuit weatherproof label sheet
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Max Cranking Current | 1500 A |
| Voltage Range | 8 - 36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Tinned wire leads |
| Ingress Protection | IP67 / IP6K9K |
