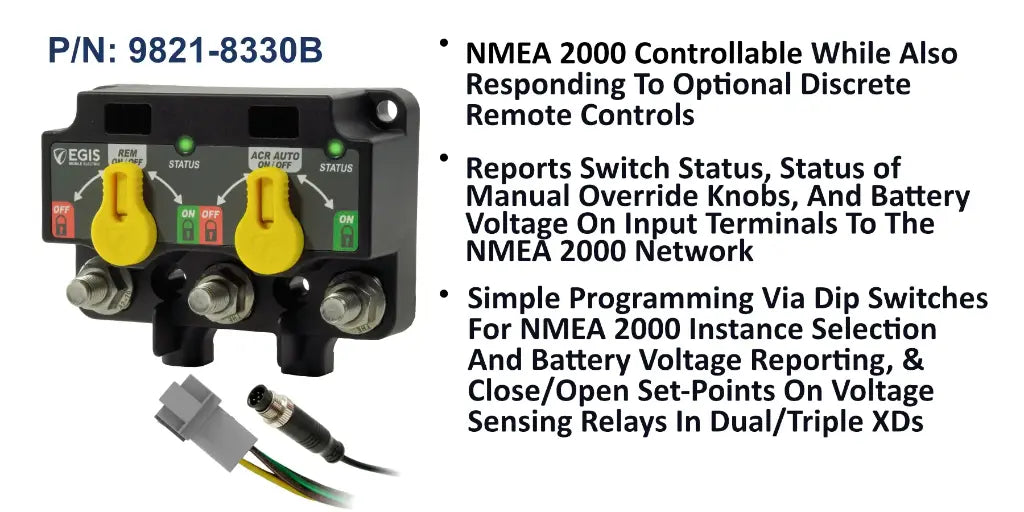

EGIS XD NMEA 2000 ACR Dual 500A 12/24V

The EGIS XD Series NMEA 2000 Dual puts two independent 500A automatic charging relays on the boat network in a single compact module. Each ACR circuit combines two battery banks while charging and isolates them when no charge source is present, sharing charge across larger multi-bank systems and eliminating dead start batteries. The integrated NMEA 2000 interface lets you switch each relay and monitor switch status and battery voltage from a compatible multi-function display, while discrete analogue inputs remain available. Each circuit is rated 500A continuous and 1600A maximum cranking across an 8 to 36 V DC range, covering standard 12V and 24V systems.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Each circuit is dip-switch programmable under the included protective cover and carries a three-position manual override knob for clear, lockable open or closed control. Front and remote LEDs report status, control connects through a single 8-position Deutsch DT connector, and the system expands with 8790 link and 8791 cross-link busbars.
