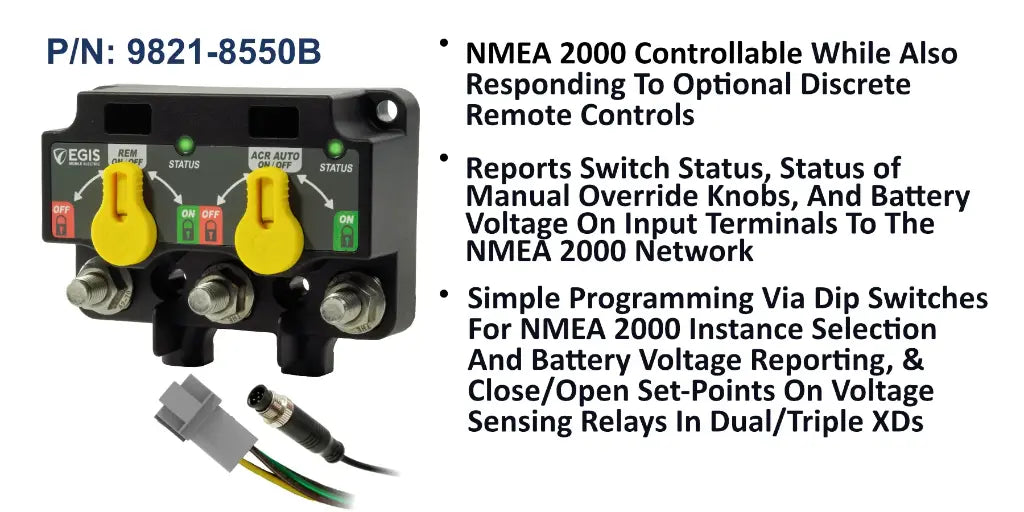

EGIS XD NMEA 2000 Dual Relay / Relay 500A with Knobs

£410.08
Tax included.
9821-6550
Dual-circuit XD NMEA 2000 relay that switches and monitors two 500 A circuits over the NMEA 2000 network or discrete analogue inputs, with manual override knobs and an 8-position DT connector.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

This dual-circuit XD relay brings NMEA 2000 control to high-current switching, letting a compatible multifunction display operate each relay and monitor both switch status and battery voltage across the network. Control is flexible: the relays respond to NMEA 2000 commands or to discrete analogue inputs, so the unit fits both networked and conventional helms. Built on the XD bi-stable solenoid platform, it carries 500 A continuous and up to 1,600 A cranking per switch, and it can share charging across two batteries while isolating them when no charge source is present, eliminating dead start batteries.

Each relay has its own three-position manual override knob to force it open or closed and lock the state, with a front-facing LED that is mirrored on an optional remote LED. Connection is through a sealed 8-position DT plug, and the relay functions are tailored using the DIP switches under the protective cover. The case is sealed to IP67 and IP6K9K with an integrated Gore-Tex vent and stainless steel studs, and the unit can be expanded with 8790 and 8791 link bars to build larger two and three battery systems.

PRODUCT DETAILS

  • NMEA 2000 control and monitoring of switch status and battery voltage from a compatible MFD
  • Operates over NMEA 2000 or discrete analogue inputs for networked or conventional installs
  • Dual-circuit switching at 500 A continuous and up to 1,600 A cranking per switch
  • Shares charging across two batteries and isolates them when no charge source is present
  • Individual three-position manual override knobs lock each relay open or closed
  • Sealed 8-position DT connector with IP67 / IP6K9K construction and Gore-Tex vent
  • Expandable with 8790 and 8791 link bars and configurable via DIP switches
  • XD dual-circuit NMEA 2000 relay with two three-position manual override knobs
  • Protective terminal cover with circuit label recesses
  • 18-8 stainless steel studs and self-locking flanged nuts
  • 8-position DT connector interface (NMEA 2000 drop cable and mating harness ordered separately)

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current500 A
Max Cranking Current1,600 A per switch
Voltage Range8-36 V DC
Standby Current15 mA
Network InterfaceNMEA 2000 or discrete analogue inputs
MonitoringSwitch status and battery voltage over NMEA 2000

Mechanical

Circuit ConfigurationDual circuit (relay / relay)
Mechanical Switching Life1,000,000 cycles
Ingress ProtectionIP67 / IP6K9K
Operating Temperature Range-40C to 106C
Manual OverrideTwo three-position knobs (lockable)
Connector8-position DT sealed plug
Mounting Hardware1/4-20 / M6 holes; 18-8 stainless steel studs, self-locking flanged nuts

No videos available for this product.

How is this relay controlled?
It can be operated over the NMEA 2000 network from a compatible multifunction display, or through discrete analogue inputs, giving flexibility for both digital-switching and conventional helms.
What information does it report over NMEA 2000?
It reports each switch status and battery voltage to the network, so they can be displayed and monitored on a compatible MFD.
Does the standby draw differ from the standard XD relays?
Yes. Because it stays awake on the NMEA 2000 bus, its standby current is 15 mA, higher than the 1.3 mA of the non-networked XD relays.
Which connector does it use?
This model uses a sealed 8-position DT connector. A NMEA 2000 drop cable and the mating harness are ordered separately.
