EGIS XD NMEA 2000 ACR Single 500A 12/24V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

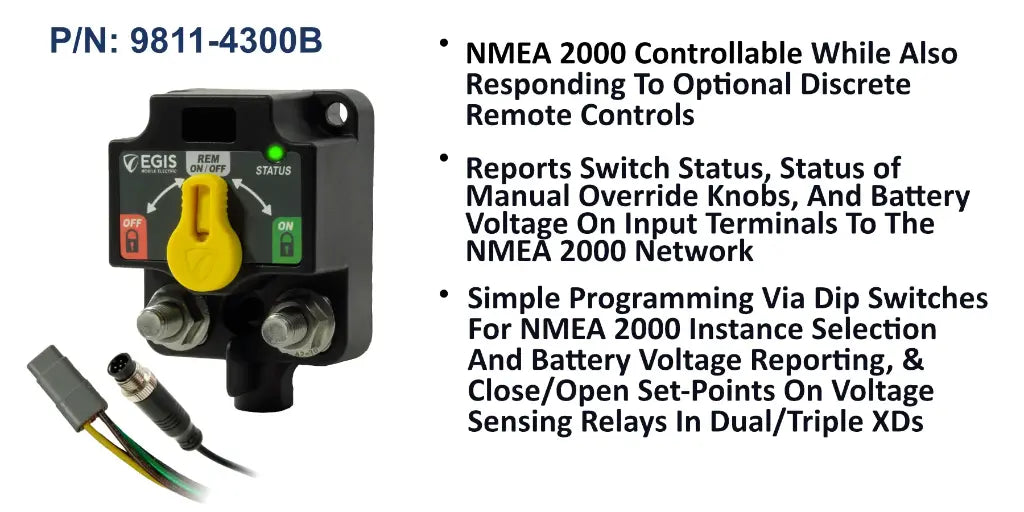

The EGIS XD Series NMEA 2000 Single brings the proven 500A bi-stable relay platform onto the boat network. Operating as an automatic charging relay (ACR), it combines two battery banks while charging and isolates them when no charge source is present, eliminating dead start batteries. Its integrated NMEA 2000 interface lets you switch the relay and monitor switch status and battery voltage directly from a compatible multi-function display, while discrete analogue inputs remain available for added flexibility. The single circuit is rated 500A continuous and 1600A maximum cranking across an 8 to 36 V DC range, covering standard 12V and 24V systems.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. The relay is dip-switch programmable under the included protective cover and carries a three-position manual override knob for clear, lockable open or closed control. Front and remote LEDs report status, control connects through a 4-position Deutsch DT connector, and the system expands with 8790 link and 8791 cross-link busbars for larger battery systems.
PRODUCT DETAILS
- Integrated NMEA 2000 control and monitoring of switch status and battery voltage
- Single-circuit automatic charging relay (ACR) eliminates dead start batteries
- Operates via NMEA 2000 or discrete analogue inputs
- 500A continuous and 1600A maximum cranking current
- Three-position manual override knob with lockable open/closed positions
- Sealed to IP67 / IP6K9K with integrated Gortex vent
- 4-position Deutsch DT connector; expandable with 8790/8791 busbars
- 1 x EGIS XD Series NMEA 2000 single-circuit relay (ACR)
- Front-facing manual override knob (fitted)
- Protective terminal cover with label recesses
- Stainless steel terminal hardware (self-locking flanged nuts)
- 4-position Deutsch DT mating connector
- Dip-switch configuration guide
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A |
| Max Cranking Current | 1600 A |
| Voltage Range | 8-36 V DC |
| Standby Current | 15 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DT NMEA 2000 (4-position) |
| Operating Temperature | -40C to 106C |
| Ingress Protection | IP67 / IP6K9K |
Connectivity
| Network | NMEA 2000 |
