EGIS XD NMEA 2000 Relay/ACR/Relay Triple 500A 12/24V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

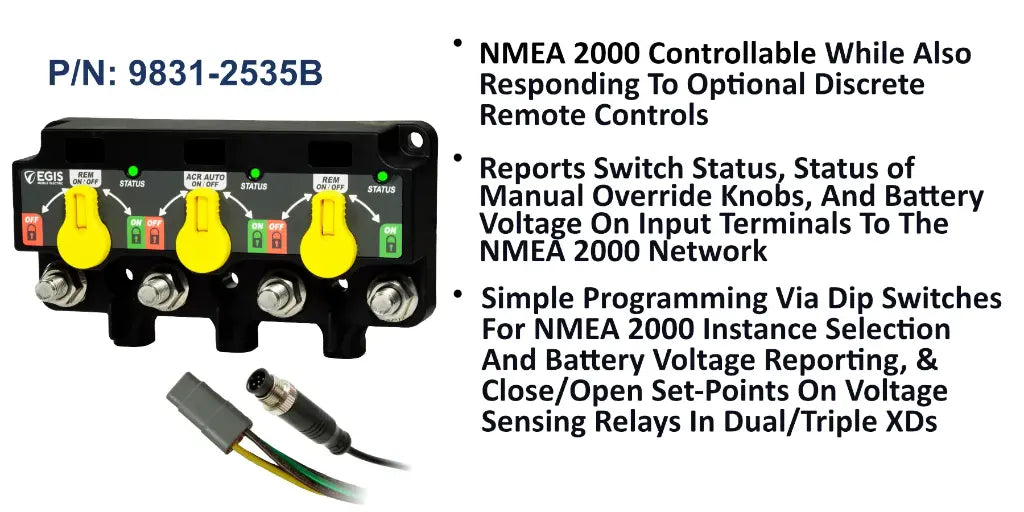

The EGIS XD Series NMEA 2000 Triple puts three independent 500A circuits on the boat network in a single compact module. Configured Relay/ACR/Relay, the two outer relays switch loads while the central automatic charging relay shares charge current between banks, making it ideal for three and four battery systems. The integrated NMEA 2000 interface lets you switch each circuit and monitor switch status and battery voltage from a compatible multi-function display, with discrete analogue inputs also available. Each circuit is rated 500A continuous and 1600A maximum cranking across an 8 to 36 V DC range, covering standard 12V and 24V systems.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Each circuit is dip-switch programmable under the included protective cover and carries a three-position manual override knob for clear, lockable open or closed control. Front and remote LEDs report status, control connects through a single 12-position Deutsch DT connector, and the unit is ignition protected to SAE J1171 / ISO 8846. The system expands with 8790 link and 8791 cross-link busbars.
PRODUCT DETAILS
- Three independent 500A circuits in one module (Relay / ACR / Relay)
- Integrated NMEA 2000 control and monitoring of switch status and battery voltage
- Operates via NMEA 2000 or discrete analogue inputs
- 500A continuous and 1600A maximum cranking per circuit
- Three-position manual override knob per circuit with lockable open/closed positions
- Sealed to IP67 / IP6K9K and ignition protected to SAE J1171 / ISO 8846
- Single 12-position Deutsch DT connector; expandable with 8790/8791 busbars
- 1 x EGIS XD Series NMEA 2000 triple-circuit module (Relay/ACR/Relay)
- Three front-facing manual override knobs (fitted)
- Protective terminal cover with label recesses
- Stainless steel terminal hardware (self-locking flanged nuts)
- 12-position Deutsch DT mating connector
- Dip-switch configuration guide
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A per circuit |
| Max Cranking Current | 1600 A |
| Voltage Range | 8-36 V DC |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DT NMEA 2000 (12-position) |
| Circuit Configuration | Relay / ACR / Relay (3 circuits) |
| Ignition Protection | SAE J1171 / ISO 8846 |
| Operating Temperature | -40C to 105C |
| Ingress Protection | IP67 / IP6K9K |
Connectivity
| Network | NMEA 2000 |
