Description

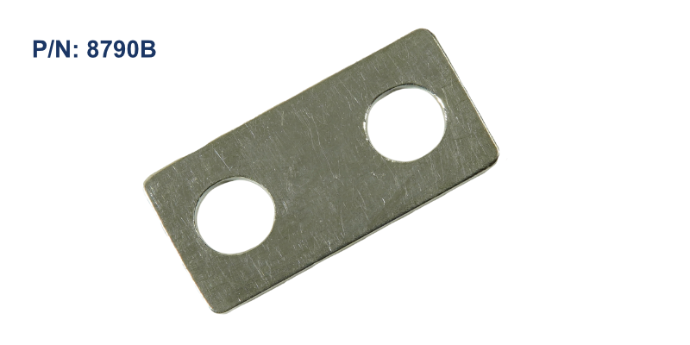

The EGIS XD Series link busbar joins XD relays directly to one another, letting single, dual and triple XD relays be ganged together for greater capability in a compact, professional installation. Made from tin-plated copper, it offers excellent electrical conductivity with anti-corrosion plating for reliable, long-lasting connections.
The link busbar measures 47.8mm long by 22.8mm wide and is 2.8mm (1/8 inch) thick, with 10.5mm terminal stud holes. Linking relays together creates compact installations and supports robust circuit switching and battery management across EGIS XD components.
PRODUCT DETAILS
- Connects EGIS XD single, dual and triple relays
- Tin-plated copper for excellent conductivity
- Anti-corrosion plating for long-term reliability
- 10.5mm terminal stud holes
- 2.8mm (1/8 inch) thickness
- Saves installation space when ganging relays
- XD Series relay link busbar
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Mechanical
| Function | Links EGIS XD single, dual and triple relays |
| Length | 47.8mm |
| Width | 22.8mm |
| Thickness | 2.8mm (1/8 inch) |
| Hole Size | 10.5mm |
| Material | Tin-plated copper |
