EGIS XD 500A Heavy-Duty Battery Disconnect / Mechanical Contactor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This XD heavy-duty battery disconnect combines a manual battery switch and a mechanical contactor in one compact, marine-grade case. Silver alloy contact points support high-amperage, full-voltage switching of up to 500 A continuous, comfortably outperforming legacy rotary battery switches, and the bright yellow knob with a clear on and off label makes the switch state obvious at a glance. Because it is ignition protected it is safe to install in petrol-powered boats and other combustible environments, and the M10 terminal studs accept heavy battery cabling.
The rectangular case is narrower than competing products, so it surface-mounts or rear-panel mounts easily, and the included protective cover with label recesses prevents accidental shorts while keeping circuits identified. Sealed to IP67 and IP6K9K with an integrated Gore-Tex pressure-regulation vent, it shrugs off moisture for reliable long-term operation across a wide -40C to 125C temperature range. It integrates directly with XD Series Flex, ACR and LVD relays using the optional 8790 link and 8791 cross-link busbars.
PRODUCT DETAILS
- Silver alloy contacts switch up to 500 A continuous at full voltage
- High-visibility yellow manual knob with clear on and off indication
- Ignition protected for safe installation in petrol-powered and combustible environments
- Sealed to IP67 and IP6K9K with integrated Gore-Tex pressure-regulation vent
- Compact rectangular case for easy surface or rear-panel mounting
- M10 terminal studs and included protective cover with circuit label recesses
- Integrates with XD Flex, ACR and LVD relays via 8790 and 8791 link busbars

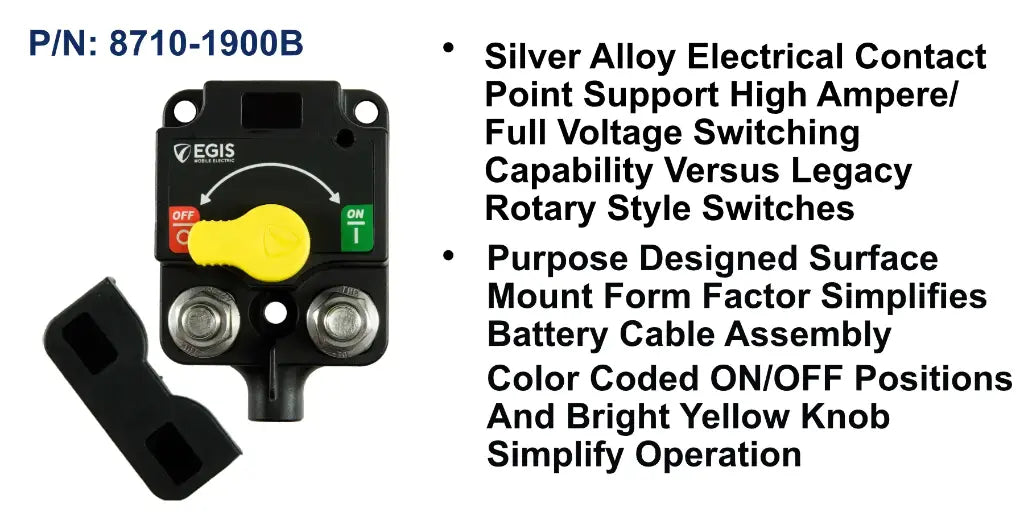

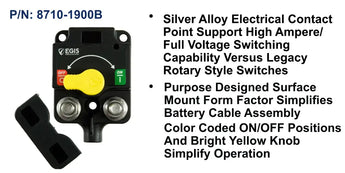

- XD 500 A battery disconnect / mechanical contactor with high-visibility manual knob
- Protective terminal cover with circuit label recesses
- 18-8 stainless steel studs and self-locking flanged nuts
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Input Voltage Range | 8-35 V DC |
| Contact Materials | Silver alloy |
Mechanical
| Device Type | Battery disconnect / mechanical contactor |
| Ingress Protection | IP67 / IP6K9K |
| Operating Temperature Range | -40C to 125C |
| Terminal Stud Size | M10 |
| Manual Control | High-visibility on/off knob |
| Ignition Protection | Yes |
| Hardware | 18-8 stainless steel studs, self-locking flanged nuts |
